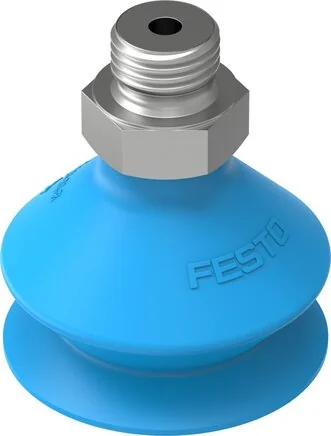

Festo - VASB-30-1/8-PUR-B-1395690 - Vacuum Sucker

SKU: festo-vasb-30-1-8-pur-b-1395690

Browse all parts
Festo - VASB-30-1/8-PUR-B-1395690 - Vacuum Sucker

€22.19€18.97 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€22.19

Brand
Festo
Colour
blue
Material Note
RoHs compliant
Stud Material
Brass
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round folding bellows1.5 times
Vacuum Connection
G1/8
Nominal Width (mm)
3
Suction Cup Volume
6,18
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
PUR
LABS (PWIS) Conformity
VDMA24364-A1-L
Operating Pressure (MPa)
-0,095 to 0
Ambient Temperature (°C)
-20 to 60
Suction Cup Diameter (mm)
30
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Effective Suction Diameter (mm)
24,8
Height Balance Suction Cup (mm)
13,9
Nominal Operating Pressure (MPa)
-0,07
Holding Force For Nominal Operating Pressure (N)
34,00
EAN
4052568062002
Manufacturer
Festo
