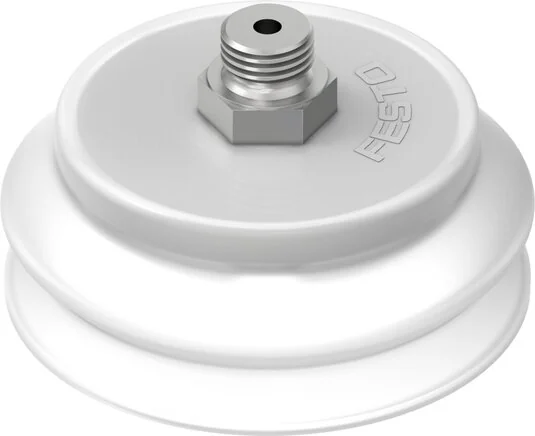

Festo - VASB-75-1/4-SI-B-1378427 - Vacuum Sucker

SKU: festo-vasb-75-1-4-si-b-1378427

Browse all parts
Festo - VASB-75-1/4-SI-B-1378427 - Vacuum Sucker

€66.16€56.55 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€66.16

Brand
Festo
Colour
transparent
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round folding bellows1.5 times
Vacuum Connection
G1/4
Food Compatibility
See expanded material information
Nominal Width (mm)
4
Suction Cup Volume
65,5
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
VMQ (Silicone)
LABS (PWIS) Conformity
VDMA24364-Zone III
Operating Pressure (MPa)
-0,095 to 0
Ambient Temperature (°C)
-40 to 200
Suction Cup Diameter (mm)
75
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Effective Suction Diameter (mm)
64,4
Height Balance Suction Cup (mm)
15,5
Nominal Operating Pressure (MPa)
-0,07
Holding Force For Nominal Operating Pressure (N)
228,00
EAN
4052568105648
Manufacturer
Festo
