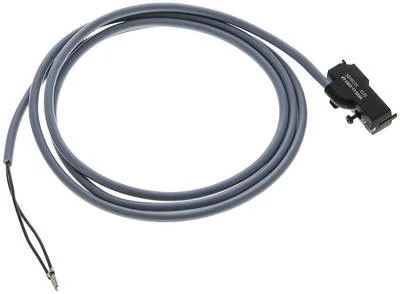

Festo - VAVE-L1-1VK7-LP-573942 - Electrical Connection Plate

SKU: festo-vave-l1-1vk7-lp-573942

Browse all parts
Festo - VAVE-L1-1VK7-LP-573942 - Electrical Connection Plate

€26.00€22.22 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€26.00

Brand
Festo
Wire Ends
Wire end sleeve
Cable Set Up
2 x 0,25 mm²
Material Note
RoHs compliant
Cover Material
PA
Fastening Type
on solenoid valve with self-cutting screw
Housing Colour
black
Seals Material
EPDM
Line Properties
For static applications
Screws Material
Quenched and tempered steel
Cable Length (m)
1
Housing Material
PA
Cable Diameter (mm)
3,4
Protection Category
IP65
Additional Functions
Spark suppression
Cable Sleeve Material
TPV
Electrical Connection
viereckige Bauform / offenes Ende
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Degree Of Contamination
3
Signal Condition Display
LED
Tolerance Cable Diameter
± 0,1 mm
Ambient Temperature (°C)
-5 to 60
Protection Line Connection
Not available
Max. Tightening Torque (Nm)
0,27
Reverse Polarity Protection
Bipolar
Surge Voltage Strength (kV)
0,8
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Min. Cable Bending Radius (mm)
34
Nominal Operating Voltage DC (V)
24 to 12
EAN
4052568059323
Manufacturer
Festo
