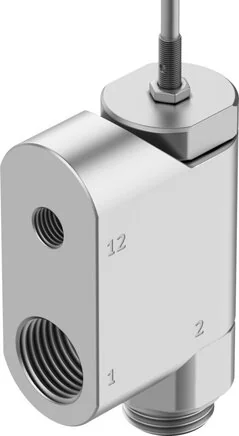

Reset Mode
Mechanical spring
Material Note
RoHs compliant
Can Be Rotated
360 deg/no permanent tilt permitted
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
with male thread
Valve Function
2/2 closed monostable
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Special Features
resistant to welding spatter
Lock Nut Material
High-alloyed stainless steels
Control Air Supply
external
Banjo Bolt Material
Aluminium wrought alloy
Installation Position
arbitrary
Measurement Principle
Inductive
Control Pressure (MPa)
0,1 to 1
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Sensor Holder Material
High-alloyed stainless steels
Medium Temperature (°C)
-5 to 60
Operating Pressure (MPa)
0,05 to 1
Switch-on Pressure (MPa)
0,15 to 0,4
Switching Position Query
Idle position with sensor
Ambient Temperature (°C)
-5 to 60
Control Air 12 Connection
G1/8
Pneumatic Off Range (MPa)
0,04
Switch-off Pressure (MPa)
0,05 to 0,2
Switching Element Function
NC contact
Swivel Connection Material
Aluminium wrought alloy
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Nominal Tightening Torque (Nm)
23
Max. Output Current Sensor (mA)
200
Short Circuit Resistance Sensor
yes
Nominal Operating Voltage DC (V)
24
Electrical Connection 1, Function
Schaltausgang
Reverse Polarity Protection Sensor
for all electrical connections
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Operating Voltage Range DC Sensor (V)
10 to 30
Tolerance To Nominal Tightening Torque
± 20 %
Electrical Connection 1, Connection Type
Cable with plug
Electrical Connection 1, Connection Pattern
991168
Electrical Connection 1, Occupied Pin / Wire
3
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
4
Nominal Flow 2->1 Normalized According To ISO 8778
1560
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Nominal Flow Rate Standardised According To ISO 8778
1470
Normal Flow 0.6->0 MPa (6->0 bar, 87->0 psi) According To ISO 8778
2560
Normal Flow 0.6->0 MPa (6->0 bar, 87->0 psi) 2->1 According To ISO 8778
2580
