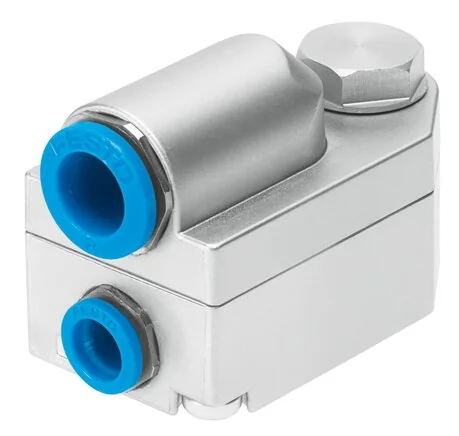

Festo - VBQF-D-G18-Q6-547534 - Quick Exhaust Valve

SKU: festo-vbqf-d-g18-q6-547534

Browse all parts
Festo - VBQF-D-G18-Q6-547534 - Quick Exhaust Valve

€48.41€41.38 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€48.41

Brand
Festo
Material Note
RoHs compliant
Fastening Type
Screwable
Seals Material
NBR
Valve Function
Quick venting
Housing Material
Zinc pressure cast
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Nominal Width (mm)
5
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-6
Pneumatic Connection 2
G1/8
Pneumatic Connection 3
QS-8
Medium Temperature (°C)
60
Operating Pressure (bar)
0.2 to 10
Ambient Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Standard Nominal Flow Rate, Exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)
1300
Standard Nominal Flow Rate, Exhaust 0.6->0.5 MPa (6->5 bar, 87->72.5 psi)
850
Standard Nominal Flow Rate, Air Flow 0.6->0,5 MPa (6->5 bar, 87->72.5 psi)
350
EAN
4052568092863
Manufacturer
Festo
