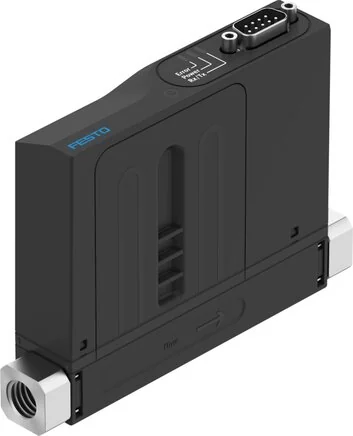

Festo - VEFC-L-6-100-D31-R14-R14-MRM1-8204593 - Mass Flow Controller (MFC)

SKU: festo-vefc-l-6-100-d31-r14-r14-mrm1-8204593

Browse all parts
Festo - VEFC-L-6-100-D31-R14-R14-MRM1-8204593 - Mass Flow Controller (MFC)

€952.15€813.80 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€952.15

Brand
Festo
KC-mark
KC-EMV
Linearity
1,5
Overshoot
2
Hysteresis
0,15
Permission
RCM mark
Display Type
LED
Material Note
RoHs compliant
Actuation Type
Electrical
Flow Direction
Not reversible
Total Accuracy
1.5 %FS
Vacuum Capable
yes
Valve Function
2-Wege-Proportional-Durchflussregelventil
Reproducibility
0,2
Residual Ripple
± 10%
Operating Medium
Inerte Gase
Climatic Category
3K22 nach EN 60721
Relative Humidity
Not condensing
Flow Control Range
5 to 100
Settling Time (ms)
500
Protection Category
IP20
Total Leakage (l/h)
0,6
Burst Pressure (MPa)
2,1
Dimensions W x L x H
24 mm x 130 mm x 97 mm
Setpoint Value Input
Modbus RTU
Max. Power Input (mA)
65
Over-voltage Category
II
Input Pressure 1 (MPa)
0,1 to 0,7
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
R1/4
Pneumatic Connection 2
R1/4
Degree Of Contamination
2
Nominal Altitude Of Use
<= 2000 m NHN
Output Pressure 2 (MPa)
-0,1 to 0,35
Overload Pressure (MPa)
0,8
Step Response Time (ms)
500
Medium Temperature (°C)
5 to 50
Operating Pressure (MPa)
0,6
Ambient Temperature (°C)
5 to 50
Bearing Temperature (°C)
-20 to 60
Fire Inspection, Material
UL94 HB
Reverse Polarity Protection
for operating voltage
KC Approval Number EMC/Radio
FTO-KC-2024-1003
Operating Voltage Range DC (V)
24
Nominal Operating Voltage DC (V)
24
Electrical Connection 1, Function
Spannungsversorgung
Max. Electrical Power Consumption (W)
1,6
Electrical Connection 1, Connection Type
Plug
Protect Against Direct And Indirect Contact
PELV
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Sub-D
Electrical Connection 1, Number Of Pins / Wires
9
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
EAN
4052568829599
Manufacturer
Festo
