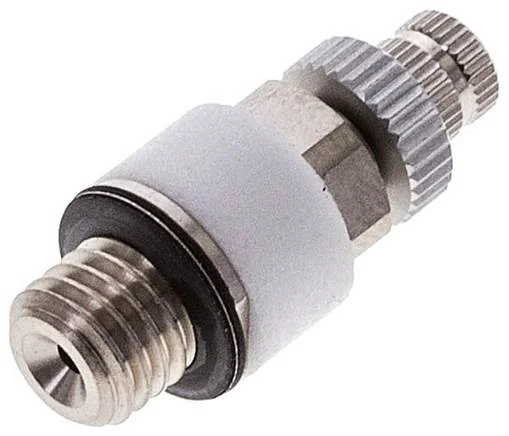

Festo - VFFK-C-K-M7-P-133141 - Throttle Silencer

SKU: festo-vffk-c-k-m7-p-133141

Browse all parts
Festo - VFFK-C-K-M7-P-133141 - Throttle Silencer

€22.86€19.54 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€22.86

Brand
Festo
Material Note
RoHs compliant
Stud Material
Nickel-plated brass
Fastening Type
Screwable
Seals Material
NBR
Valve Function
Drossel-Schalldruck-Funktion
Setting Element
knurled screw
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Seal Type On Stud
gasket
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
M7
Medium Temperature (°C)
0 to 60
Operating Pressure (bar)
0 to 10
Ambient Temperature (°C)
0 to 60
Dampening Insert Material
PE
Regulation Screw Material
Nickel-plated brass
Nominal Tightening Torque (Nm)
3,8
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Operating Pressure Complete Temperature Range (bar)
0 to 10
Standard Flow Rate 0.6->0 MPa (6->0 bar, 87->0 psi)
0 to 100
EAN
4052568030216
Manufacturer
Festo
