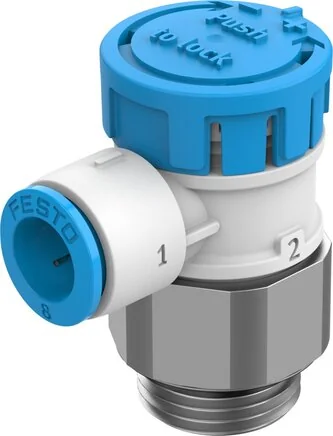

Festo - VFOE-LE-T-G38-Q8-8068731 - Throttle Check Valve

SKU: festo-vfoe-le-t-g38-q8-8068731

Browse all parts
Festo - VFOE-LE-T-G38-Q8-8068731 - Throttle Check Valve

€28.89€24.69 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€28.89

Brand
Festo
Material Note
RoHs compliant
Actuation Type
Manually
Can Be Rotated
360 deg/no permanent tilt permitted
Cover Material
PBT
Fastening Type
Screwable
Valve Function
Exhaust air flow control return function
Setting Element
Rotary button with stopper
Sleeve Material
PBT
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Spanner Width (mm)
21
Installation Position
arbitrary
Material Static Seals
NBR
Dynamic Seals Material
HNBR
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
QS-8
Pneumatic Connection 2
G3/8
Threaded Bolt Material
Zinc-plated steel
Medium Temperature (°C)
60
Ambient Temperature (°C)
-10 to 60
Nominal Tightening Torque (Nm)
13
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Tolerance To Nominal Tightening Torque
± 20 %
Normal Nominal Flow In One-way Flow Control
720
Normal Nominal Flow In Check Valve Direction
600 to 900
Operating Pressure Complete Temperature Range (MPa)
0,02 to 1
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
1300 to 1500
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
1150
EAN
4052568454432
Manufacturer
Festo
