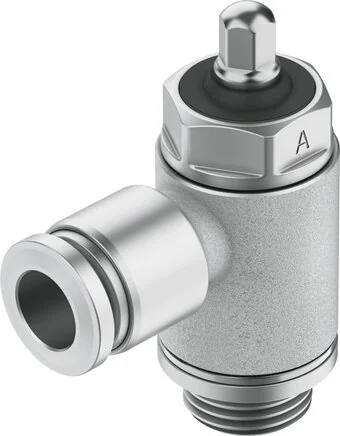

Festo - VFOH-LE-A-G14-Q8-578800 - Throttle Check Valve

SKU: festo-vfoh-le-a-g14-q8-578800

Browse all parts
Festo - VFOH-LE-A-G14-Q8-578800 - Throttle Check Valve

€51.06€43.64 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€51.06

Brand
Festo
Material Note
RoHs compliant
Actuation Type
Manually
Fastening Type
Screwable
Seals Material
FPM
Valve Function
Exhaust air flow control return function
Setting Element
Exterior hexagonal
Sleeve Material
Nickel-plated brass
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Banjo Bolt Material
Aluminium wrought alloy
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
QS-8
Pneumatic Connection 2
G1/4
Medium Temperature (°C)
0 to 150
Ambient Temperature (°C)
0 to 150
Bearing Temperature (°C)
-10 to 150
Regulation Screw Material
High-alloyed stainless steels
Swivel Connection Material
nickel-plated
Nominal Tightening Torque (Nm)
5
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Tolerance To Nominal Tightening Torque
± 10 %
Normal Nominal Flow In One-way Flow Control
530
Normal Nominal Flow In Check Valve Direction
402 to 578
Operating Pressure Complete Temperature Range (bar)
0.2 to 10
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
610 to 760
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
720
EAN
4052568262747
Manufacturer
Festo
