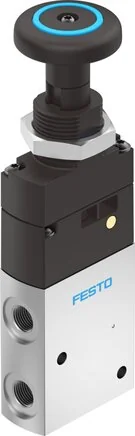

Festo - VHEF-PTCZ-B32-G14-5299714 - Push Button Valve

SKU: festo-vhef-ptcz-b32-g14-5299714

Browse all parts
Festo - VHEF-PTCZ-B32-G14-5299714 - Push Button Valve

€162.34€138.75 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€162.34

Brand
Festo
Overlap
Nullüberdeckung
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Manually
Cover Material
PA reinforced
Fastening Type
With throughway bores
Flow Direction
Reversible
Seals Material
NBR
Valve Function
3/2 bistable
Build Width (mm)
20
Exhaust Function
Can be throttled
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
6
Actuating Force (N)
20,0
Construction Set Up
Plate seat
Unlocking Force (N)
25
Pilot Air Port 12/14
M5
Hand Assist Actuation
Ratcheting
Installation Position
arbitrary
Control Pressure (MPa)
0,3 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Pneumatic Connection 3
G1/4
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
-0,095 to 1
Ambient Temperature (°C)
-10 to 60
Control Air 12 Connection
M5
Max. Switching Frequency (Hz)
0,5
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
870
EAN
4052568422707
Manufacturer
Festo
