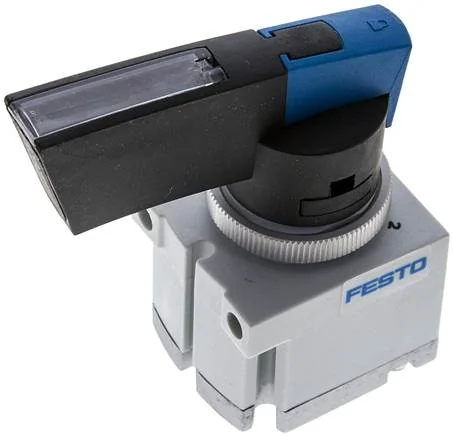

Festo - VHER-P-H-B43E-B-G18-3488211 - Control Spool

SKU: festo-vher-p-h-b43e-b-g18-3488211

Browse all parts
Festo - VHER-P-H-B43E-B-G18-3488211 - Control Spool

€118.40€101.20 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€118.40

Brand
Festo
Control Type
Direct
Material Note
RoHs compliant
Actuation Fuse
With Accessories lockable
Actuation Type
Manually
Fastening Type
With throughway bores
Flow Direction
Not reversible
Lever Material
PA
Seals Material
NBR
Valve Function
4/3 vented
Build Width (mm)
42
Exhaust Function
Can be throttled
Housing Material
PA
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Hard
Nominal Width (mm)
6
Construction Set Up
Rotary disc
Actuation Torque (Nm)
0,9
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Pneumatic Connection 3
G1/8
Pneumatic Connection 4
G1/8
Freedom From Cross-talk
yes
Medium Temperature (°C)
-20 to 80
Operating Pressure (bar)
0 to 10
Ambient Temperature (°C)
-20 to 80
Switching Position Display
mit Zubehoer
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Information About Operating Pressure
Beim Zweidruck-Betrieb muss der Druck an Anschluss 1 höher als am Anschluss 3 sein.
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
800
EAN
4052568269920
Manufacturer
Festo
