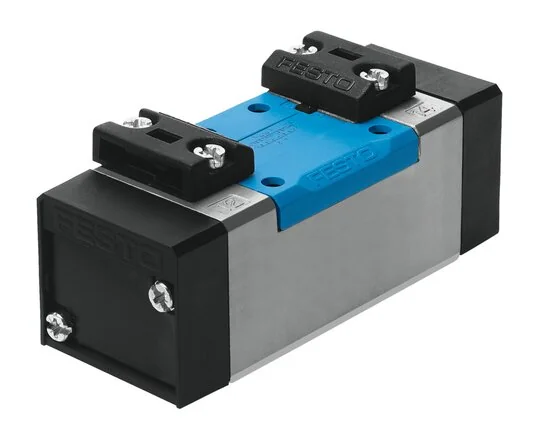

Festo - VL-5/3B-D-3-C-EX-536027 - Pneumatic Valve

SKU: festo-vl-5-3b-d-3-c-ex-536027

Browse all parts
Festo - VL-5/3B-D-3-C-EX-536027 - Pneumatic Valve

€393.11€335.99 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€393.11

Brand
Festo
Overlap
positive Überdeckung
ISO-Code
307
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With Throughway bore and screw
Flow Direction
Reversible
Seals Material
NBR
Valve Function
5/3 ventilated
Build Width (mm)
65
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
ATEX Gas Category
II 2G
Sealing Principle
Soft
ATEX Dust Category
II 2D
Nominal Width (mm)
14,5
Construction Set Up
Piston pusher
Complies To Standard
ISO 5599-1
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
71
Hand Assist Actuation
None
Installation Position
arbitrary
Shifting Time On (ms)
16
Control Pressure (bar)
0,3 to 1,6
Ex Ambient Temperature
-10°C <= Ta <= +60°C
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 2
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 3
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 4
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 5
Connection plate Size 3 to ISO 5599-1
Shifting Time Off (ms)
60
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
-0,09 to 1,6
Ambient Temperature (°C)
-10 to 60
Control Air 12 Connection
Connection plate Size 3 to ISO 5599-1
Control Air 14 Connection
Connection plate Size 3 to ISO 5599-1
Sound Pressure Level (dB(A))
85
Ex Ignition Protection Type Gas
Ex h IIC T4 Gb
Ex Ignition Protection Type Dust
Ex h IIIC T130°C Db
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Ex Protection Approval Outside Of The EU
EPL Gb (GB)
UKCA Marking (See Declaration Of Conformity)
nach UK EX Vorschriften
CE Certificate (See Declaration Of Conformity)
to EU EX protection directive (ATEX)
Standard Nominal Flow Rate (Standardised To DIN 1343)
4100
EAN
4052568170561
Manufacturer
Festo
