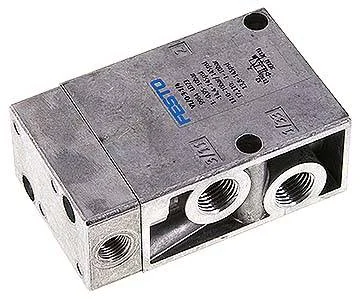

Festo - VL/O-3-1/4-9984 - Pneumatic Valve

SKU: festo-vl-o-3-1-4-9984

Browse all parts
Festo - VL/O-3-1/4-9984 - Pneumatic Valve

€181.19€154.86 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€181.19

Brand
Festo
Overlap
negative Überdeckung
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Flow Direction
Reversible
Seals Material
NBR
Valve Function
3/2 open/closed monostable
Build Width (mm)
30,5
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
7
Construction Set Up
Plate seat
Protection Category
IP65
Pitch Dimension (mm)
32
Installation Position
arbitrary
Shifting Time On (ms)
7
Control Pressure (MPa)
0,1 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Pneumatic Connection 3
G1/4
Shifting Time Off (ms)
26
Pneumatic Connection 11
G1/4
Pneumatic Connection 33
G1/4
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
-0,095 to 1
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-20 to 60
Control Air 12 Connection
G1/8
Control Air 110 Connection
G1/8
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
800
EAN
4052568002084
Manufacturer
Festo
