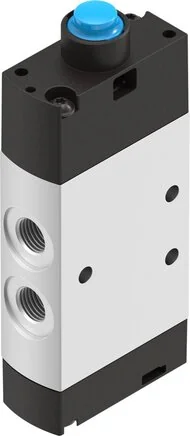

Festo - VMEF-SC-M52-M-G18-8031320 - Plunger Valve

SKU: festo-vmef-sc-m52-m-g18-8031320

Browse all parts
Festo - VMEF-SC-M52-M-G18-8031320 - Plunger Valve

€152.25€130.13 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€152.25

Brand
Festo
Overlap
positive Überdeckung
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Mechanical
Cover Material
PA reinforced
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
5/2 monostable
Build Width (mm)
20
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
5,2
Actuating Force (N)
14,0
Construction Set Up
Piston pusher
Pilot Air Port 12/14
M5
Installation Position
arbitrary
Control Pressure (MPa)
0,25 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Pneumatic Connection 3
G1/8
Pneumatic Connection 4
G1/8
Pneumatic Connection 5
G1/8
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,25 to 1
Ambient Temperature (°C)
-10 to 60
Max. Switching Frequency (Hz)
3
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
750
EAN
4052568428426
Manufacturer
Festo
