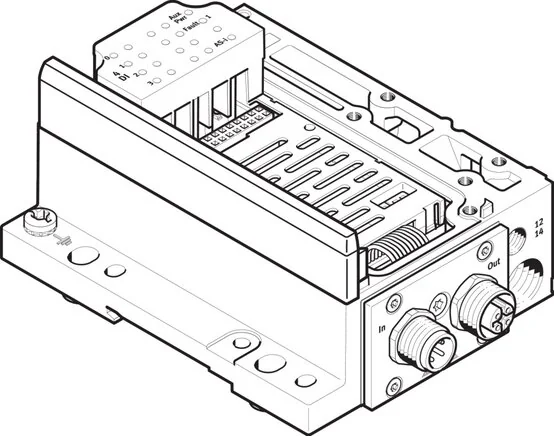

Festo - VMPA-ASI-EPL-E-4E4A-Z-546988 - Electrical Connection

SKU: festo-vmpa-asi-epl-e-4e4a-z-546988

Browse all parts
Festo - VMPA-ASI-EPL-E-4E4A-Z-546988 - Electrical Connection

€388.79€332.30 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€388.79

Brand
Festo
Material Note
RoHs compliant
Fastening Type
With Slot rail
Addressing Area
1 ... 31
Housing Material
PA
Fieldbus Interface
Stecker, M12 (ASI In)
Protection Category
IP20
Dimensions W x L x H
85 mm x 122.9 mm x 55.1 mm
Max. Number Of Inputs
4
Response Delay Inputs
typ. 3 ms bei 24 V
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Switching Logic Inputs
PNP (Positive switching)
LED Display Bus Specific
Fault: AS-Interface Fehler
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 40
Logic Level Digital Inputs
AUS: -30 - 5V
Quantity Slaves Per Device
1
Characteristic Curves Inputs
to IEC 1131-2 type 02
LED Display Product Specific
Signal at input / output
Residual Ripple AS Interface
<= 20 mVss
Residual Ripple Load Voltage
4 Vss
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Number Of Valve Positions
4
Operating Voltage DC AS-interface (V)
26.5 to 31.6
Operating Voltage DC Load Voltage (V)
21.6 to 26.4
Operating Voltage Range DC Electronics / Sensor
US+ / US- : <= AS-Interface bus voltage - 2,5V
Power Input For Load Supply From AS Interface And Load Voltage Connection
Max. Summenstrom Ausgänge MPA2: 533 mA
EAN
4052568185626
Manufacturer
Festo
