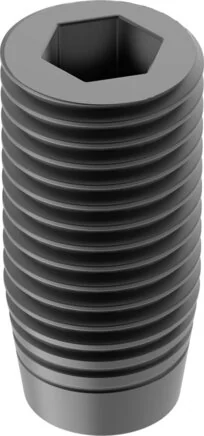

Festo - VMPA-FT-NW0.5-10-572545 - Fixed Throttle

SKU: festo-vmpa-ft-nw0-5-10-572545

Browse all parts
Festo - VMPA-FT-NW0.5-10-572545 - Fixed Throttle

€69.33€59.26 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€69.33

Brand
Festo
Material Note
RoHs compliant
Fastening Type
Screwable
Valve Function
Throttle function
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Nominal Width (mm)
0,5
Banjo Bolt Material
Aluminium wrought alloy
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate
Medium Temperature (°C)
-5 to 60
Operating Pressure (bar)
-0.9 to 10
Ambient Temperature (°C)
-5 to 60
Bearing Temperature (°C)
-20 to 40
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
9 to 12
EAN
4052568102463
Manufacturer
Festo
