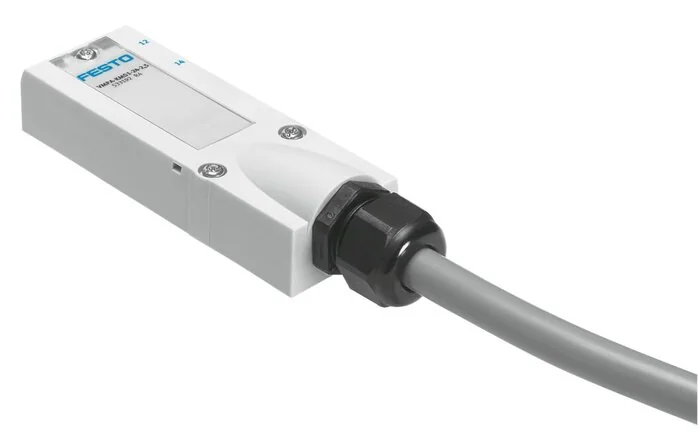

Festo - VMPA-KMS2-24-5-PUR-533502 - Connection Line

SKU: festo-vmpa-kms2-24-5-pur-533502

Browse all parts
Festo - VMPA-KMS2-24-5-PUR-533502 - Connection Line

€239.73€204.90 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€239.73

Brand
Festo
Wire Ends
Cut dull
Cable Gland
M20x1,5
Cable Set Up
25 x 0,25 mm²
Material Note
RoHs compliant
Housing Colour
Grey
Seals Material
NBR
Line Properties
energiekettentauglich
Cable Length (m)
5
Housing Material
PA
Line Designation
Without sign holder
Based On Standard
DIN 41652
Cable Diameter (mm)
10,8
Cable Shield Colour
Grey
Protection Category
acc. to IEC 60529
Connection Frequency
50
Locking Nut Material
PA
Test Conditions Line
Prüfbedingungen nach Anfrage
Cable Sleeve Material
TPE-U(PUR)
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Copper alloy gold plated
Degree Of Contamination
3
Ambient Temperature (°C)
-25 to 80
Surge Voltage Strength (kV)
1
Current Carrying Capacity (A)
3
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
0 to 30
Electrical Connection 1, Design
Angular
Nominal Operating Voltage DC (V)
24
Conductor - Nominal Cross-section
0,25
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
Angled
Information About Protection Category
In mounted condition
Electrical Connection 1, Fastening Type
3x Schraube M3
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 2, Connection Type
cable
Bending Radius, Moving Cable Placement (mm)
49
Electrical Connection 1, Connection Pattern
995643
Electrical Connection 1, Occupied Pin / Wire
25
Electrical Connection 2, Occupied Pin / Wire
25
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Bending Radius, Permanent Cable Placement (mm)
29,4
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Sub-D
Electrical Connection 2, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
25
Electrical Connection 2, Number Of Pins / Wires
25
Ambient Temperature For Moving Cable Placements (°C)
-25 to 80
EAN
4052568167486
Manufacturer
Festo
