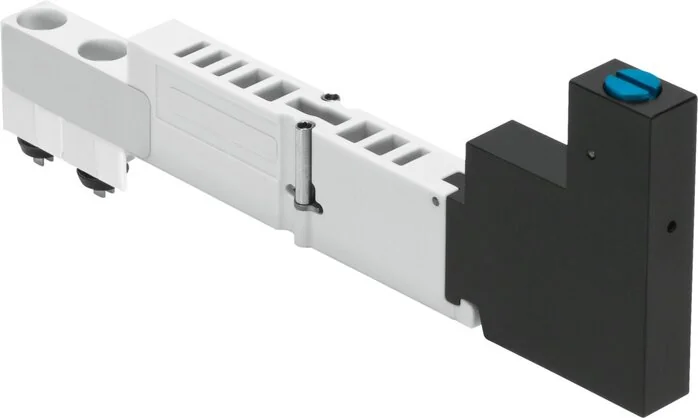

Festo - VMPA1-HS-567805 - Vertical Pressure Lock Plate

SKU: festo-vmpa1-hs-567805

Browse all parts
Festo - VMPA1-HS-567805 - Vertical Pressure Lock Plate

€77.97€66.64 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€77.97

Brand
Festo
Material Note
RoHs compliant
Build Width (mm)
10,0
Housing Material
PA reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Protection Category
IP65
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Operating Pressure (bar)
3 to 8
Pneumatic Height Linking
Blocking for 1
Ambient Temperature (°C)
-5 to 50
Normal Nominal Flow Venting
103
213
Fastening Type Height Linking
auf Einzelanschlussplatte
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568100742
Manufacturer
Festo
