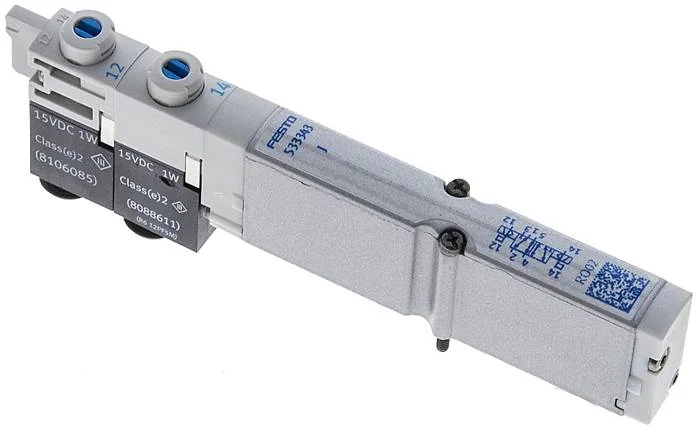

Festo - VMPA1-M1H-J-PI-533343 - Solenoid Valve

SKU: festo-vmpa1-m1h-j-pi-533343

Browse all parts
Festo - VMPA1-M1H-J-PI-533343 - Solenoid Valve

€155.26€132.70 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€155.26

Brand
Festo
Overlap
positive Überdeckung
Permission
c UL us - Recognized (OL)
Control Type
pilot operated
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Reversible
Seals Material
NBR
Vacuum Capable
yes
Valve Function
5/2 bistable
Valve Size (mm)
10
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
max. 90 % at 40 °C
Sealing Principle
Soft
Shifting Time (ms)
15
Construction Set Up
Piston pusher
Protection Category
IP65, acc. to IEC 60529
Material Information
RoHs compliant
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Hand Assist Actuation
Ratcheting, tentative
Installation Position
arbitrary
Shifting Time On (ms)
10
Medium Temperature (°C)
-5 to 50
Operating Pressure (bar)
-0.9 to 10
Signal Condition Display
yes
Bearing Temperature (°C)
-20 to 40
Permitted Voltage Oscillations
± 25 %
Normal Nominal Flow With QS-6 (l/min)
360
Max. Tightening Torque Valve Fastening (Nm)
0,25
Max. Positive Test Impulse At 0 Signal (µs)
400
Max. Negative Test Impulse For 1 Signal (µs)
200
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
1 - low corrosion stress
Standard Nominal Flow Rate (Standardised To DIN 1343) (l/min)
360
EAN
4052568166458
Manufacturer
Festo
