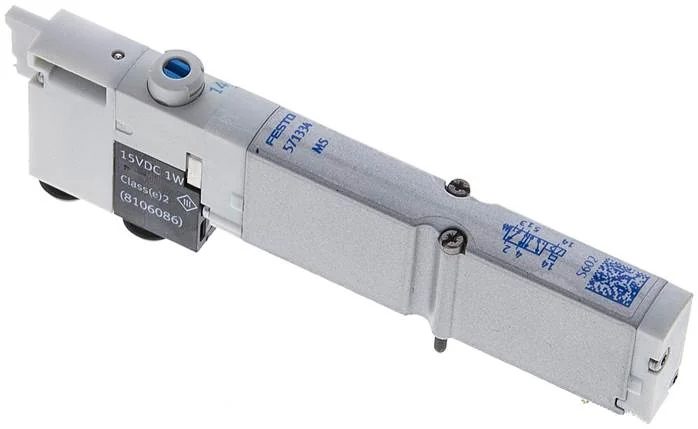

Festo - VMPA1-M1H-MS-PI-571334 - Solenoid Valve

SKU: festo-vmpa1-m1h-ms-pi-571334

Browse all parts
Festo - VMPA1-M1H-MS-PI-571334 - Solenoid Valve

€119.09€101.79 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€119.09

Brand
Festo
Overlap
positive Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Reversible
Seals Material
NBR
Vacuum Capable
yes
Valve Function
5/2 monostable
Valve Size (mm)
10
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
max. 90 % at 40 °C
Sealing Principle
Soft
Construction Set Up
Piston pusher
Protection Category
IP65, In mounted condition, acc. to IEC 60529
Material Information
RoHs compliant
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Hand Assist Actuation
Ratcheting, tentative
Installation Position
arbitrary
Shifting Time On (ms)
10
Shifting Time Off (ms)
27
Medium Temperature (°C)
-5 to 50
Operating Pressure (bar)
-0.9 to 8
Signal Condition Display
yes
Bearing Temperature (°C)
-20 to 40
Permitted Voltage Oscillations
± 25 %
Normal Nominal Flow With QS-6 (l/min)
360
Max. Tightening Torque Valve Fastening (Nm)
0,25
Max. Positive Test Impulse At 0 Signal (µs)
400
Max. Negative Test Impulse For 1 Signal (µs)
200
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
1 - low corrosion stress
Standard Nominal Flow Rate (Standardised To DIN 1343) (l/min)
360
EAN
4052568101183
Manufacturer
Festo
