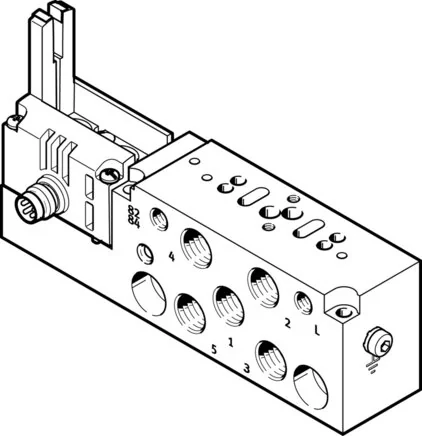

Festo - VMPA14-IC-AP-1-8023666 - Connection Plate

SKU: festo-vmpa14-ic-ap-1-8023666

Browse all parts
Festo - VMPA14-IC-AP-1-8023666 - Connection Plate

€117.01€100.01 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€117.01

Brand
Festo
KC-mark
KC-EMV
Permission
c UL us - Recognized (OL)
Width (mm)
24,4
Length (mm)
107,3
Material Note
RoHs compliant
Pitch Dimension (mm)
14,9
Electrical Connection
Plug
Control Pressure (MPa)
0,3 to 0,8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Pneumatic Connection 3
G1/8
Pneumatic Connection 4
G1/8
Pneumatic Connection 5
G1/8
Operating Pressure (bar)
0,3 to 0,8
Ambient Temperature (°C)
-5 to 50
Connection Plate Material
Aluminium die casting
Corrosion Resistance Class KBK
0 - No corrosion stressing
Fastening Type Connection Plate
With throughway bores
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
EAN
4052568278878
Manufacturer
Festo
