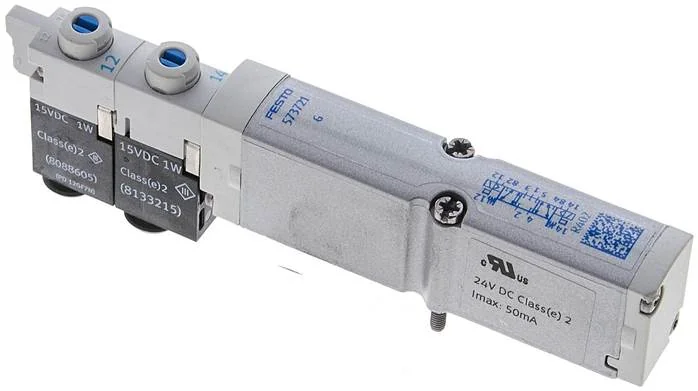

Festo - VMPA14-M1H-D-S-G1/8-PI-8023569 - Solenoid Valve

SKU: festo-vmpa14-m1h-d-s-g1-8-pi-8023569

Browse all parts
Festo - VMPA14-M1H-D-S-G1/8-PI-8023569 - Solenoid Valve

€279.88€239.21 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€279.88

Brand
Festo
Overlap
positive Überdeckung
Permission
c CSA us (OL), c UL us - Recognized (OL)
Reset Mode
Pneumatic spring
Control Type
pilot operated
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Vacuum Capable
no
Valve Function
2x2/2 closed monostable
Valve Size (mm)
14
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
max. 90 % at 40 °C
Sealing Principle
Soft
Control Air Supply
external
Construction Set Up
Piston pusher
Protection Category
IP65, acc. to IEC 60529
Material Information
RoHs compliant
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
M8x1, 4 pin, acc. to EN 60947-5-2, Plug
Hand Assist Actuation
Ratcheting, tentative
Installation Position
arbitrary
Shifting Time On (ms)
12
Control Pressure (bar)
3 to 8
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Pneumatic Connection 3
G1/8
Pneumatic Connection 4
G1/8
Pneumatic Connection 5
G1/8
Shifting Time Off (ms)
30
Medium Temperature (°C)
-5 to 50
Operating Pressure (bar)
3 to 10
Signal Condition Display
yes
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 40
Normal Nominal Flow (l/min)
570
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Voltage Oscillations
± 25 %
Exhaust Control Connection 82/84
M5
Support Air Control Connection 12/14
M5
Normal Nominal Flow With QS-8 (l/min)
570
Max. Tightening Torque Valve Fastening (Nm)
0,65
Max. Positive Test Impulse At 0 Signal (µs)
400
Max. Negative Test Impulse For 1 Signal (µs)
200
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568278809
Manufacturer
Festo
