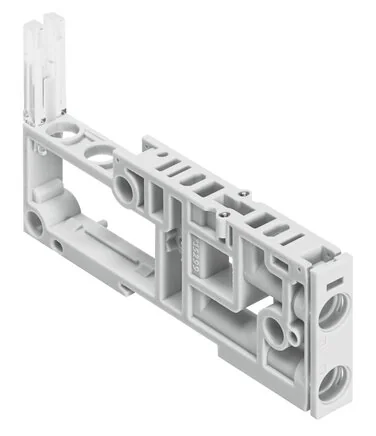

Festo - VMPAL-AP-10-T135-RV-8035233 - Connection Plate

SKU: festo-vmpal-ap-10-t135-rv-8035233

Browse all parts
Festo - VMPAL-AP-10-T135-RV-8035233 - Connection Plate

€28.64€24.48 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€28.64

Brand
Festo
Width (mm)
10,7
Length (mm)
107,3
Material Note
RoHs compliant
Flow Direction
Not reversible
Vacuum Capable
no
Build Width (mm)
10
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Integrated Function
check valves
Pitch Dimension (mm)
10,7
Control Pressure (MPa)
0,3 to 0,8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 2
for cartridge 10 mm
Pneumatic Connection 4
for cartridge 10 mm
Valve Island Structure
Valve sizes mixable
Operating Pressure (MPa)
-0,09 to 1
Pressure Zone Separation
Channel 1, 3 and 5
Ambient Temperature (°C)
-5 to 50
Connection Plate Material
PA reinforced
Corrosion Resistance Class KBK
3 - severe corrosion stress
Max. Number Of Valve Positions
1
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568429416
Manufacturer
Festo
