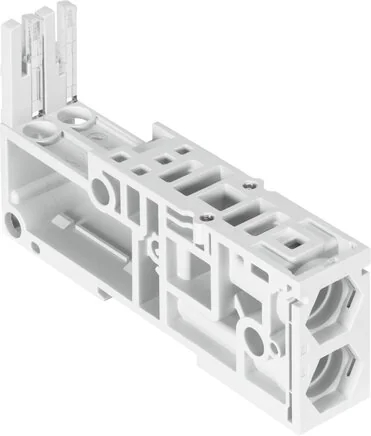

Festo - VMPAL-AP-20-QS8-1-560997 - Connection Plate

SKU: festo-vmpal-ap-20-qs8-1-560997

Browse all parts
Festo - VMPAL-AP-20-QS8-1-560997 - Connection Plate

€53.96€46.12 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€53.96

Brand
Festo
Width (mm)
21,2
Length (mm)
107,3
Material Note
RoHs compliant
Flow Direction
Reversible
Valve Size (mm)
20
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Pitch Dimension (mm)
21,2
Control Pressure (MPa)
0,3 to 0,8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 2
für Schlauch Außen-Ø 8 mm
Pneumatic Connection 4
für Schlauch Außen-Ø 8 mm
Valve Island Structure
Valve sizes mixable
Operating Pressure (MPa)
-0,09 to 1
Ambient Temperature (°C)
-5 to 50
Connection Plate Material
PA reinforced
Max. Number Of Valve Coils
1
Corrosion Resistance Class KBK
3 - severe corrosion stress
Max. Number Of Valve Positions
1
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568098575
Manufacturer
Festo
