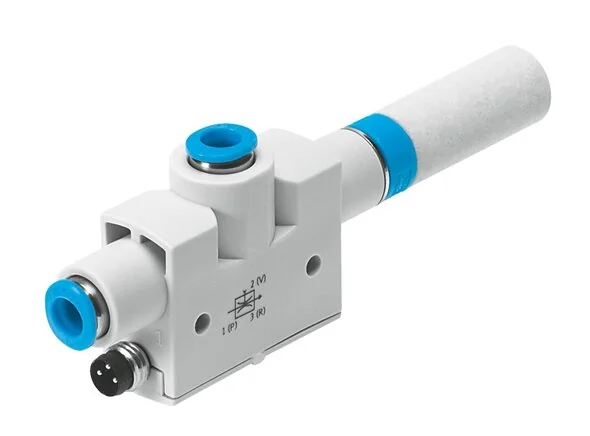

Festo - VN-05-H-T4-PQ2-VQ2-O2-P-536797 - Vacuum Suction Nozzle

SKU: festo-vn-05-h-t4-pq2-vq2-o2-p-536797

Festo - VN-05-H-T4-PQ2-VQ2-O2-P-536797 - Vacuum Suction Nozzle

€210.32€179.76 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€210.32

Brand
Festo
KC-mark
KC-EMV
Permission
RCM mark
Max. Vacuum
92
Display Type
LED
Control Output
PNP
Fastening Type
With throughway bores
Seals Material
NBR
Long Term Drift
± 0.5 % FS max.
Residual Ripple
10%
Setting Options
Teach-in
Switch Function
Threshold value with variable hysteresis
Housing Material
POM reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Voltage Drop (V)
1,5
Silencer Material
PE
Vacuum Connection
QS-6
Measured Parameter
Relative pressure
Overload Resistant
Available
Accuracy In ± % FS
1,5
Construction Set Up
T-shape
Integrated Function
Silencer open
Jet Nozzle Material
Aluminium wrought alloy
Measurement Process
Relative
Protection Category
IP40
Switch On Time (ms)
4
Light Guide Material
PC
Pitch Dimension (mm)
16
Switch Off Time (ms)
4
Button Field Material
POM
Electrical Connection
M8
Installation Position
arbitrary
Measurement Principle
Piezoresistive
Plug Housing Material
verchromt und vernickelt
Residual Current (mA)
0,3
Ejector Characteristic
Standard
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-6
Pneumatic Connection 3
Silencer open
Capture Nozzle Material
POM
Max. Output Current (mA)
100
Medium Temperature (°C)
0 to 60
Operating Pressure (bar)
0.1 to 0.8
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
0 to 50
Screw Connection Material
nickel-plated
Pressure Measurement Range
-0,1 to 0
Switching Element Function
NO contact
Switching Status Indicator
LED
Max. Tightening Torque (Nm)
0,6
Reverse Polarity Protection
for all electrical connections
Inductive Protection Circuit
adjusted to MZ, MY, ME coils
Corrosion Resistance Class KBK
1 - low corrosion stress
Operating Voltage Range DC (V)
15 to 30
Settings Range Threshold Value
-0,1 to 0
Construction Type Silencer Type
open
Nominal Width Laval Nozzle (mm)
0,45
Nominal Operating Pressure (bar)
0,6
Note On Operating And Control Medium
Oiled operation not possible
Temperature Coefficient Switch Point
0,05
Operating Pressure For Max. Vacuum (bar)
0,49
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für EMV
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Max. Suction Volume Flow Rate Against Atmosphere
7,2
Noise Level For Nominal Operating Pressure (dB(A))
62
Operating Pressure For Max. Suction Volume Flow (bar)
0,3
EAN
4052568171858
Manufacturer
Festo
