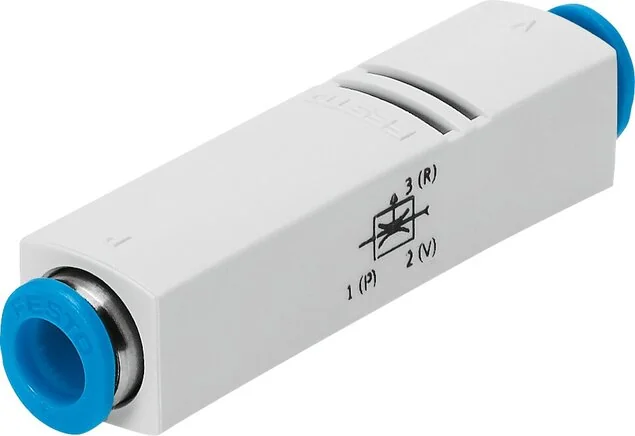

Festo - VN-05-M-I3-PQ2-VQ2-193552 - Vacuum Suction Nozzle

SKU: festo-vn-05-m-i3-pq2-vq2-193552

Festo - VN-05-M-I3-PQ2-VQ2-193552 - Vacuum Suction Nozzle

€48.79€41.70 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€48.79

Brand
Festo
Max. Vacuum
86
Material Note
RoHs compliant
Fastening Type
pipe installation
Seals Material
NBR
Housing Material
POM reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Vacuum Connection
QS-6
Construction Set Up
straight shape
Jet Nozzle Material
Aluminium wrought alloy
Pitch Dimension (mm)
13
Installation Position
arbitrary
Ejector Characteristic
Inline
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-6
Pneumatic Connection 3
Not recorded
Capture Nozzle Material
POM
Medium Temperature (°C)
0 to 60
Operating Pressure (bar)
1 to 8
Ambient Temperature (°C)
0 to 60
Screw Connection Material
nickel-plated
Corrosion Resistance Class KBK
1 - low corrosion stress
Nominal Width Laval Nozzle (mm)
0,45
Nominal Operating Pressure (bar)
6
Note On Operating And Control Medium
Oiled operation not possible
Operating Pressure For Max. Vacuum (bar)
6
Venting Time For Nominal Operating Pressure (s)
4,7
Max. Suction Volume Flow Rate Against Atmosphere
6,1
Operating Pressure For Max. Suction Volume Flow (bar)
6,3
EAN
4052568080129
Manufacturer
Festo
