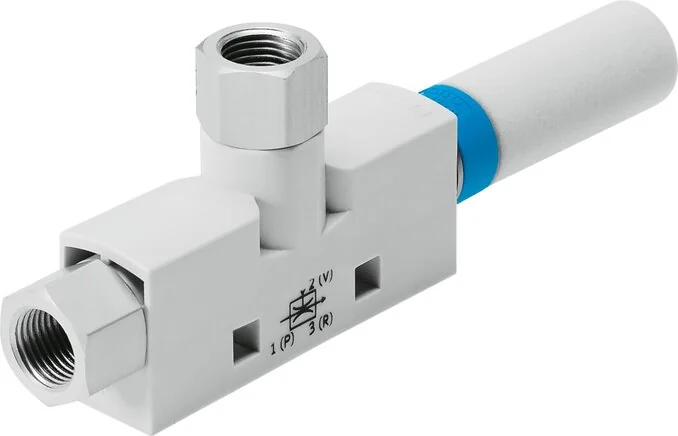

Festo - VN-07-H-T3-PI4-VI4-RO1-193508 - Vacuum Suction Nozzle

SKU: festo-vn-07-h-t3-pi4-vi4-ro1-193508

Festo - VN-07-H-T3-PI4-VI4-RO1-193508 - Vacuum Suction Nozzle

€59.90€51.20 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€59.90

Brand
Festo
Max. Vacuum
88
Material Note
RoHs compliant
Fastening Type
With Accessories
Seals Material
NBR
Housing Material
POM reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Silencer Material
PE
Vacuum Connection
G1/8
Construction Set Up
T-shape
Integrated Function
Silencer open
Jet Nozzle Material
Aluminium wrought alloy
Pitch Dimension (mm)
14
Installation Position
arbitrary
Ejector Characteristic
Standard
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 3
Silencer open
Capture Nozzle Material
POM
Medium Temperature (°C)
0 to 60
Operating Pressure (bar)
1 to 8
Ambient Temperature (°C)
0 to 60
Connection Thread Material
Nickel-plated brass
Max. Tightening Torque (Nm)
0,5
Corrosion Resistance Class KBK
1 - low corrosion stress
Construction Type Silencer Type
open
Nominal Width Laval Nozzle (mm)
0,7
Nominal Operating Pressure (bar)
6
Note On Operating And Control Medium
Oiled operation not possible
Operating Pressure For Max. Vacuum (bar)
4,7
Venting Time For Nominal Operating Pressure (s)
1,9
Max. Suction Volume Flow Rate Against Atmosphere
16
Noise Level For Nominal Operating Pressure (dB(A))
64
Operating Pressure For Max. Suction Volume Flow (bar)
2,1
EAN
4052568079956
Manufacturer
Festo
