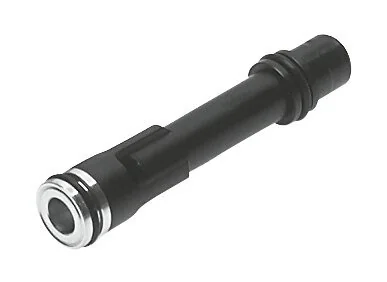

Festo - VN-07-L-547696 - Vacuum Suction Nozzle Cartridge

SKU: festo-vn-07-l-547696

Festo - VN-07-L-547696 - Vacuum Suction Nozzle Cartridge

€39.74€33.97 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€39.74

Brand
Festo
Seals Material
NBR
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Jet Nozzle Material
Aluminium wrought alloy
Installation Position
arbitrary
Ejector Characteristic
hohes Saugvolumen
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Capture Nozzle Material
POM
Medium Temperature (°C)
0 to 60
Operating Pressure (bar)
1 to 8
Ambient Temperature (°C)
0 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Nominal Width Laval Nozzle (mm)
0,7
Nominal Operating Pressure (bar)
6
Note On Operating And Control Medium
Oiled operation not possible
Venting Time For Nominal Operating Pressure (s)
0,82
Max. Suction Volume Flow Rate Against Atmosphere
30,9
EAN
4052568051686
Manufacturer
Festo
