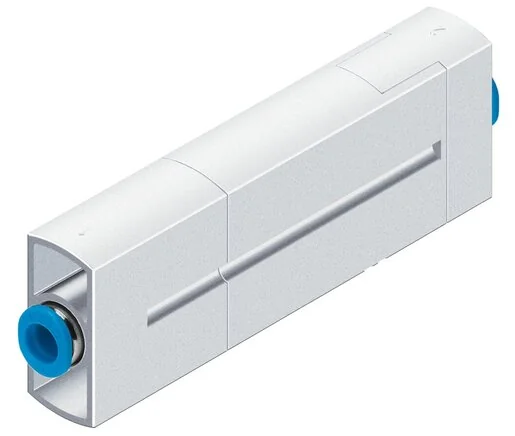

Festo - VN-07-M-I3-PQ2-VQ2-A-532634 - Vacuum Suction Nozzle

SKU: festo-vn-07-m-i3-pq2-vq2-a-532634

Festo - VN-07-M-I3-PQ2-VQ2-A-532634 - Vacuum Suction Nozzle

€132.65€113.38 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€132.65

Brand
Festo
Max. Vacuum
93
Material Note
RoHs compliant
Fastening Type
pipe installation
Seals Material
NBR
Screws Material
Steel
Housing Material
POM reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Vacuum Connection
QS-6
Construction Set Up
straight shape
Integrated Function
Ejection impulse valve pneumatic
Jet Nozzle Material
Aluminium wrought alloy
Pitch Dimension (mm)
14,5
Installation Position
arbitrary
Ejector Characteristic
hoher Unterdruck
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-6
Capture Nozzle Material
POM
Medium Temperature (°C)
0 to 60
Operating Pressure (bar)
1 to 8
Ambient Temperature (°C)
0 to 60
Screw Connection Material
nickel-plated
Connection Thread Material
Aluminium-Knetlegierung, eloxiert
Corrosion Resistance Class KBK
1 - low corrosion stress
Nominal Width Laval Nozzle (mm)
0,7
Nominal Operating Pressure (bar)
6
Note On Operating And Control Medium
Oiled operation not possible
Operating Pressure For Max. Vacuum (bar)
4,3
Venting Time For Nominal Operating Pressure (s)
1,69
Max. Suction Volume Flow Rate Against Atmosphere
16,6
Noise Level For Nominal Operating Pressure (dB(A))
75
Operating Pressure For Max. Suction Volume Flow (bar)
2
EAN
4052568165253
Manufacturer
Festo
