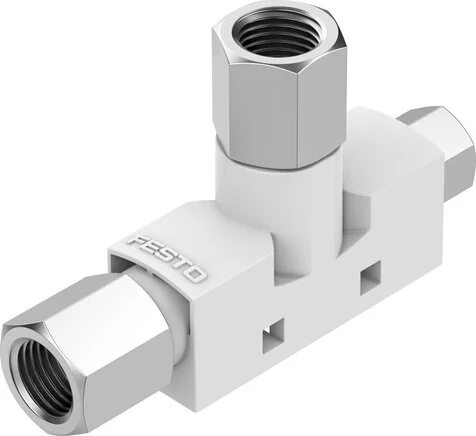

Festo - VN-14-H-T4-PI4-VI5-RI5-193502 - Vacuum Suction Nozzle

SKU: festo-vn-14-h-t4-pi4-vi5-ri5-193502

Festo - VN-14-H-T4-PI4-VI5-RI5-193502 - Vacuum Suction Nozzle

€59.10€50.51 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€59.10

Brand
Festo
Max. Vacuum
88
Material Note
RoHs compliant
Fastening Type
With Accessories
Seals Material
NBR
Housing Material
POM reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Vacuum Connection
G1/4
Construction Set Up
T-shape
Jet Nozzle Material
Aluminium wrought alloy
Pitch Dimension (mm)
18
Installation Position
arbitrary
Ejector Characteristic
Standard
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 3
G1/4
Capture Nozzle Material
POM
Medium Temperature (°C)
0 to 60
Operating Pressure (bar)
1 to 8
Ambient Temperature (°C)
0 to 60
Connection Thread Material
Aluminium-Knetlegierung, eloxiert
Max. Tightening Torque (Nm)
0,5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Nominal Width Laval Nozzle (mm)
1,4
Nominal Operating Pressure (bar)
6
Note On Operating And Control Medium
Oiled operation not possible
Operating Pressure For Max. Vacuum (bar)
5
Venting Time For Nominal Operating Pressure (s)
0,5
Max. Suction Volume Flow Rate Against Atmosphere
51,6
Operating Pressure For Max. Suction Volume Flow (bar)
5,1
EAN
4052568079932
Manufacturer
Festo
