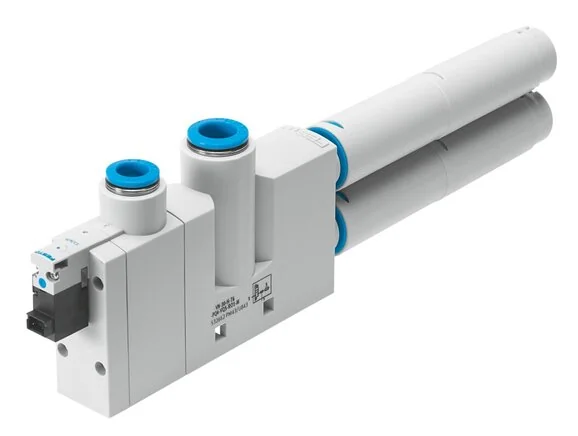

Festo - VN-30-H-T6-PQ4-VQ5-RO2-M-532662 - Vacuum Suction Nozzle

SKU: festo-vn-30-h-t6-pq4-vq5-ro2-m-532662

Browse all parts
Festo - VN-30-H-T6-PQ4-VQ5-RO2-M-532662 - Vacuum Suction Nozzle

€322.05€275.26 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€322.05

Brand
Festo
Max. Vacuum
93
Material Note
RoHs compliant
Power-on Time
100%
Fastening Type
With Accessories
Seals Material
NBR
Screws Material
Steel
Housing Material
POM reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Silencer Material
PU foam
Vacuum Connection
QS-12
Construction Set Up
T-shape
Integrated Function
Silencer open
Jet Nozzle Material
Aluminium wrought alloy
Protection Category
IP40
Pitch Dimension (mm)
24
Electrical Connection
Plug
Hand Assist Actuation
tentative
Installation Position
arbitrary
Ejector Characteristic
hoher Unterdruck
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
QS-10
Pneumatic Connection 3
Silencer open
Capture Nozzle Material
POM
Medium Temperature (°C)
0 to 50
Operating Pressure (bar)
2 to 8
Ambient Temperature (°C)
0 to 50
Screw Connection Material
nickel-plated
Connection Thread Material
Aluminium-Knetlegierung, eloxiert
Corrosion Resistance Class KBK
1 - low corrosion stress
Operating Voltage Range DC (V)
21.6 to 26.4
Construction Type Silencer Type
open
Nominal Width Laval Nozzle (mm)
3
Electrical Power Consumption (W)
1,2
Nominal Operating Pressure (bar)
6
Note On Operating And Control Medium
Oiled operation not possible
Operating Pressure For Max. Vacuum (bar)
3,7
Venting Time For Nominal Operating Pressure (s)
0,13
Max. Suction Volume Flow Rate Against Atmosphere
186
Noise Level For Nominal Operating Pressure (dB(A))
78
Operating Pressure For Max. Suction Volume Flow (bar)
3
EAN
4052568165420
Manufacturer
Festo
