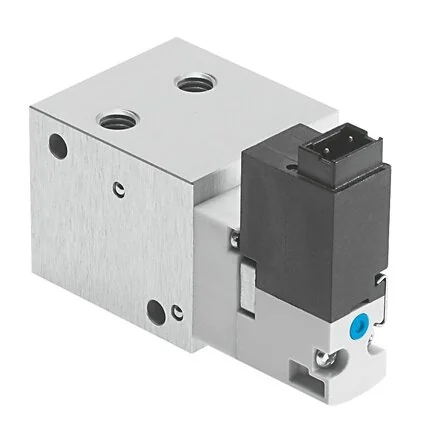

Festo - VOVG-L12-M52Q-AH-M5-1H3-560702 - Solenoid Valve

SKU: festo-vovg-l12-m52q-ah-m5-1h3-560702

Browse all parts
Festo - VOVG-L12-M52Q-AH-M5-1H3-560702 - Solenoid Valve

€131.66€112.53 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€131.66

Brand
Festo
Overlap
positive Überdeckung
Reset Mode
Pneumatic spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
5/2 monostable
Build Width (mm)
25
Exhaust Function
Can be throttled
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Nominal Width (mm)
2,1
Construction Set Up
Piston pusher
Protection Category
IP40
Electrical Connection
Plug
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
15
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
M7
Pneumatic Connection 2
M5
Pneumatic Connection 3
M5
Shifting Time Off (ms)
18
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0,2 to 0,8
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
24 V DC: 1,0 W
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
200
EAN
4052568207533
Manufacturer
Festo
