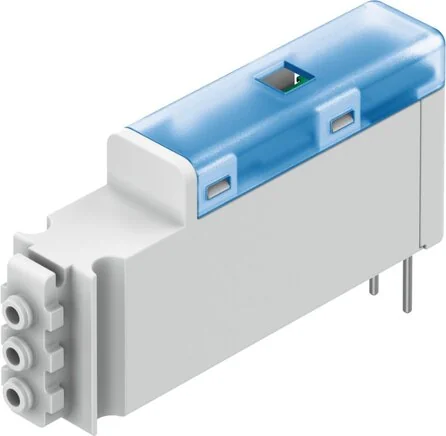

Festo - VOVK-BT6-M32C-MN-1T1P-FF-8122778 - Solenoid Valve

SKU: festo-vovk-bt6-m32c-mn-1t1p-ff-8122778

Browse all parts
Festo - VOVK-BT6-M32C-MN-1T1P-FF-8122778 - Solenoid Valve

€43.25€36.97 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€43.25

Brand
Festo
Cv Value
0,006
Reset Mode
Mechanical spring
Control Type
Electrical
Material Note
RoHs compliant
Power-on Time
100 % innerhalb von 500 h
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Reversible
Valve Function
3/2 closed monostable
Spring Material
High-alloyed stainless steels
Build Width (mm)
5,9
Exhaust Function
Can be throttled
Housing Material
PBT
Operating Medium
Druckluft nach ISO 8573-1:2010 [6:4:1]
Relative Humidity
70%
Sealing Principle
Soft
Nominal Width (mm)
0,36
Construction Set Up
Poppet valve with reset spring
Protection Category
IP40
Electrical Connection
2 pin
Hand Assist Actuation
None
Installation Position
arbitrary
Shifting Time On (ms)
13
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
Connection plate
Pneumatic Connection 3
Connection plate
Shifting Time Off (ms)
6
Medium Temperature (°C)
5 to 50
Operating Pressure (MPa)
-0,1 to 0,7
Ambient Temperature (°C)
5 to 50
Max. Switching Frequency (Hz)
10
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Voltage Oscillations
± 10 %
Electrical Power Consumption (W)
0,5
Nominal Operating Voltage DC (V)
24
Information About Operating Pressure
Betriebsdruck Anschluss 3: nur -1 to 0 bar
Note On Operating And Control Medium
Oiled operation not possible
Standard Nominal Flow Rate (Standardised To DIN 1343)
5,5
EAN
4052568550806
Manufacturer
Festo
