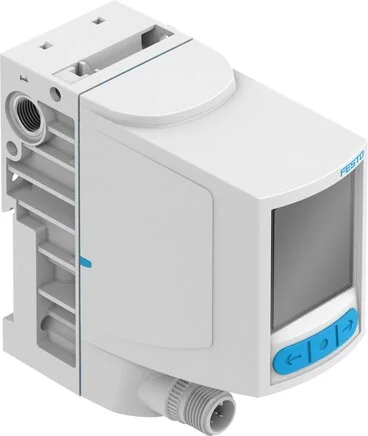

Festo - VPPI-5L-3-G18-0L10H-V1-S1D-8104669 - Proportional Pressure Regulating Valve

SKU: festo-vppi-5l-3-g18-0l10h-v1-s1d-8104669

Browse all parts
Festo - VPPI-5L-3-G18-0L10H-V1-S1D-8104669 - Proportional Pressure Regulating Valve

€1,127.69€963.84 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,127.69

Brand
Festo
KC-mark
KC-EMV
Linearity
0,9
Hysteresis
0,4
Permission
c UL us - Listed (OL)
Reset Mode
Mechanical spring
Control Type
Direct
Display Size
"1,77"""
Display Type
TFT colour
Material Note
RoHs compliant
Actuation Type
Electrical
Control Output
Push-Pull
Fastening Type
With Slot rail
Flow Direction
Not reversible
Seals Material
PTFE
Total Accuracy
1,1 %FS
Valve Function
3-way proportional pressure regulator valve
Reproducibility
0,4
Housing Material
PA reinforced
Input Resistance
100
Operating Medium
Inerte Gase
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Climatic Category
3K3 nach EN 60721
Relative Humidity
Not condensing
Sealing Principle
Soft
Certification Body
UL E322346
Display Resolution
128x160 Pixel
Food Compatibility
See expanded material information
Construction Set Up
Poppet valve with reset spring
Nominal Current (A)
0,15
Protection Category
IP65
Total Leakage (l/h)
5
Burst Pressure (bar)
40
Dimensions W x L x H
42,2 mm x 95,3 mm x 94,3 mm
Max. Line Length (m)
30
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Setpoint Value Input
Digital
Installation Position
arbitrary
Max. Power Input (mA)
525
Input Pressure 1 (bar)
0 to 13
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Pneumatic Connection 3
G1/8
Degree Of Contamination
2
Nominal Altitude Of Use
< 3000 m NHN
Normal Nominal Flow 2-3
750
Temperature Coefficient
0,02
Max. Output Current (mA)
25
Medium Temperature (°C)
0 to 50
Operating Pressure (bar)
10 to 12
Short Circuit Resistance
for all electrical connections
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
-20 to 70
Sound Power Level (dB(A))
62,5
Nominal Width Venting (mm)
5
Reverse Polarity Protection
for all electrical connections
Signal Range Analogue Output
0 - 10 V
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Nominal Width Ventilation (mm)
5
Operating Voltage Range DC (V)
21.6 to 27.6
Pressure Regulation Range (MPa)
0 to 1
Nominal Operating Voltage DC (V)
24
Electrical Connection 1, Function
Spannungsversorgung
Accuracy Analogue Output In ± %FS
1
Note On Operating And Control Medium
Oiled operation not possible
Max. Electrical Power Consumption (W)
14,5
Electrical Connection 1, Connection Type
Plug
Min. Load Resistance Voltage Output (Ohm)
2
Electrical Connection 1, Connection Pattern
995383
Max. Tightening Torque Screw Connection (Nm)
8,5
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Sound Power Level At A Distance Of 1 M (dB(A))
51,9
Electrical Connection 1, Number Of Pins / Wires
5
Electrical Connection 1, Tightening Torque (Nm)
1,5
Standard Nominal Flow Rate (Standardised To DIN 1343)
1400
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568459666
Manufacturer
Festo
