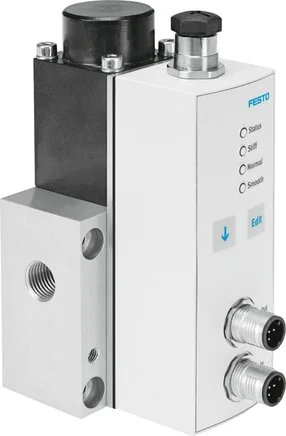

Festo - VPPL-3Q-3-Z-0L40H-V1-A-S1-8-1910709 - Proportional Pressure Regulating Valve

SKU: festo-vppl-3q-3-z-0l40h-v1-a-s1-8-1910709

Browse all parts
Festo - VPPL-3Q-3-Z-0L40H-V1-A-S1-8-1910709 - Proportional Pressure Regulating Valve

€2,887.15€2,467.65 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,887.15

Brand
Festo
B-value
0.25
C-value
0,8
KC-mark
KC-EMV
Permission
c UL us - Listed (OL)
Reset Mode
Mechanical spring
Control Type
Direct
Display Type
LED display
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With throughway bores
Total Accuracy
1.5 %FS
Valve Function
3-way proportional pressure regulator valve closed
Residual Ripple
10%
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Inerte Gase
Sealing Principle
Soft
Construction Set Up
Directly controlled piston control valve
Protection Category
IP65
Max. Line Length (m)
30
Installation Position
Preferentially standing
Shifting Time On (ms)
428
TARGET / ACTUAL Value
Voltage type 0 - 10 V
Input Pressure 1 (bar)
0 to 50
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
flange
Pneumatic Connection 3
flange
Shifting Time Off (ms)
654
Normal Nominal Flow 2-3
282
Repeatability In ± %FS
1
Temperature Coefficient
0,04
Medium Temperature (°C)
5 to 50
Operating Pressure (MPa)
5
Short Circuit Resistance
no
Ambient Temperature (°C)
5 to 50
Bearing Temperature (°C)
-10 to 60
Electrical Connection, IN
plug, M12, 5 pin, A-coded
Linearity Error In ± %FS
1
Electrical Connection: OUT
plug, M12, 5 pin, A-coded
Nominal Width Venting (mm)
3
Reverse Polarity Protection
for all electrical connections
Signal Range Analogue Input
0 - 10 V
Signal Range Analogue Output
4 - 20 mA
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Pressure Hysteresis (MPa)
0,04
Nominal Width Ventilation (mm)
3
Operating Voltage Range DC (V)
21.6 to 27.6
Pressure Regulation Range (MPa)
0,04 to 4
Note On Operating And Control Medium
Oiled operation not possible
Max. Electrical Power Consumption (W)
26,7
Electrical Connection: Diagnose Interface
Socket, M12, 5-pin A-coded
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für EMV
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Standard Nominal Flow Rate (Standardised To DIN 1343)
245
EAN
4052568264321
Manufacturer
Festo
