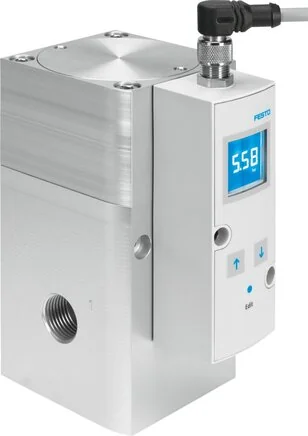

Festo - VPPM-12L-L-1-G12-0L6H-V1N-S1C1-575239 - Proportional Pressure Regulating Valve

SKU: festo-vppm-12l-l-1-g12-0l6h-v1n-s1c1-575239

Browse all parts
Festo - VPPM-12L-L-1-G12-0L6H-V1N-S1C1-575239 - Proportional Pressure Regulating Valve

€1,555.27€1,329.29 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,555.27

Brand
Festo
KC-mark
KC-EMV
Linearity
1
Hysteresis
0,5
Permission
c UL us - Listed (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Display Type
Backlit LCD
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Output
NPN
Fastening Type
With Accessories
Total Accuracy
1,25 %FS
Valve Function
3-way proportional pressure regulator valve
Reproducibility
0,5
Residual Ripple
10%
Housing Material
eloxiert
Operating Medium
Inerte Gase
Repeatability FS
0,5
Sealing Principle
Soft
Certification Body
UL E322346
Construction Set Up
Pre-controlled membrane control valve
Protection Category
IP65
Electrical Connection
Plug
Installation Position
arbitrary
Max. Power Input (mA)
500
Input Pressure 1 (bar)
0 to 8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Pneumatic Connection 3
G1/2
Temperature Coefficient
0,04
Medium Temperature (°C)
10 to 50
Short Circuit Resistance
for all electrical connections
Ambient Temperature (°C)
0 to 50
Nominal Width Venting (mm)
12
Reverse Polarity Protection
for all electrical connections
Signal Range Analogue Input
0 - 10 V
Signal Range Analogue Output
0 - 10 V
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Pressure Hysteresis (bar)
0,03
Nominal Width Ventilation (mm)
12
Operating Voltage Range DC (V)
21.6 to 26.4
Pressure Regulation Range (MPa)
0,006 to 0,6
Accuracy Analogue Output In ± %FS
2
Note On Operating And Control Medium
Oiled operation not possible
Max. Electrical Power Consumption (W)
12
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Standard Nominal Flow Rate (Standardised To DIN 1343)
4500
EAN
4052568223793
Manufacturer
Festo
