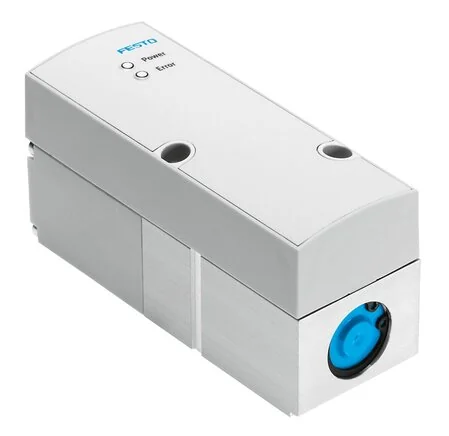

Festo - VPPM-6TA-L-1-F-0L10H-S1-542219 - Proportional Pressure Regulating Valve

SKU: festo-vppm-6ta-l-1-f-0l10h-s1-542219

Browse all parts
Festo - VPPM-6TA-L-1-F-0L10H-S1-542219 - Proportional Pressure Regulating Valve

€887.33€758.40 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€887.33

Brand
Festo
KC-mark
KC-EMV
Linearity
1
Hysteresis
0,5
Permission
c UL us - Listed (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Display Type
LED
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With Accessories
Total Accuracy
1,25 %FS
Valve Function
3-way proportional pressure regulator valve
Reproducibility
0,5
Residual Ripple
10%
Housing Material
eloxiert
Operating Medium
Inerte Gase
Repeatability FS
0,5
Sealing Principle
Soft
Certification Body
UL E322346
Construction Set Up
Pre-controlled membrane control valve
Protection Category
IP65
Electrical Connection
Via connection plate
Installation Position
arbitrary
Max. Power Input (mA)
300
Input Pressure 1 (bar)
0 to 11
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate
Pneumatic Connection 2
Connection plate
Pneumatic Connection 3
Connection plate
Temperature Coefficient
0,04
Medium Temperature (°C)
10 to 50
Short Circuit Resistance
for all electrical connections
Ambient Temperature (°C)
0 to 60
Nominal Width Venting (mm)
4,5
Reverse Polarity Protection
for all electrical connections
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Pressure Hysteresis (bar)
0,05
Nominal Width Ventilation (mm)
6
Operating Voltage Range DC (V)
21.6 to 26.4
Pressure Regulation Range (MPa)
0,01 to 1
Note On Operating And Control Medium
Oiled operation not possible
Max. Electrical Power Consumption (W)
7
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Standard Nominal Flow Rate (Standardised To DIN 1343)
1400
EAN
4052568179977
Manufacturer
Festo
