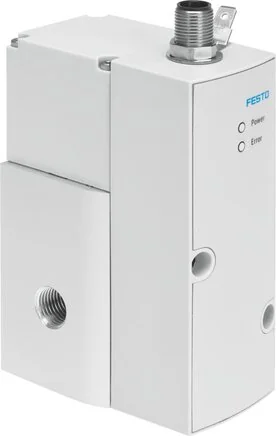

Festo - VPPM-8L-L-1-G14-0L6H-LK-S1-8024262 - Proportional Pressure Regulating Valve

SKU: festo-vppm-8l-l-1-g14-0l6h-lk-s1-8024262

Browse all parts
Festo - VPPM-8L-L-1-G14-0L6H-LK-S1-8024262 - Proportional Pressure Regulating Valve

€1,184.61€1,012.49 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,184.61

Brand
Festo
Report
IO-Link
KC-mark
KC-EMV
Linearity
1
Hysteresis
0,5
Permission
c UL us - Listed (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Display Type
LED
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With Accessories
Total Accuracy
1,25 %FS
Valve Function
3-way proportional pressure regulator valve
Reproducibility
0,5
Residual Ripple
10%
Housing Material
eloxiert
Operating Medium
Inerte Gase
Repeatability FS
0,5
Sealing Principle
Soft
Certification Body
UL E322346
Construction Set Up
Pre-controlled membrane control valve
IO-Link, Port Class
A
Protection Category
IP65
Installation Position
arbitrary
Max. Power Input (mA)
300
Input Pressure 1 (bar)
0 to 8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Pneumatic Connection 3
G1/4
Temperature Coefficient
0,04
Medium Temperature (°C)
10 to 50
Short Circuit Resistance
for all electrical connections
Ambient Temperature (°C)
0 to 60
IO-Link, Protocol Version
Device V 1.1
Nominal Width Venting (mm)
7
IO-Link, Communication Mode
COM1 (4,8 kBaud), COM2 (38,4 kBaud), COM3 (230,4 kBaud)
Reverse Polarity Protection
for all electrical connections
Corrosion Resistance Class KBK
2 - moderate corrosion stress
IO-Link, Process Data Width IN
2 Bytes
Max. Pressure Hysteresis (bar)
0,03
Nominal Width Ventilation (mm)
8
Operating Voltage Range DC (V)
18 to 30
IO-Link, Process Data Width OUT
2 Bytes
Pressure Regulation Range (MPa)
0,006 to 0,6
IO-Link, Minimum Cycle Time (ms)
0.5
Note On Operating And Control Medium
Oiled operation not possible
Max. Electrical Power Consumption (W)
7
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Standard Nominal Flow Rate (Standardised To DIN 1343)
1750
EAN
4052568279004
Manufacturer
Festo
