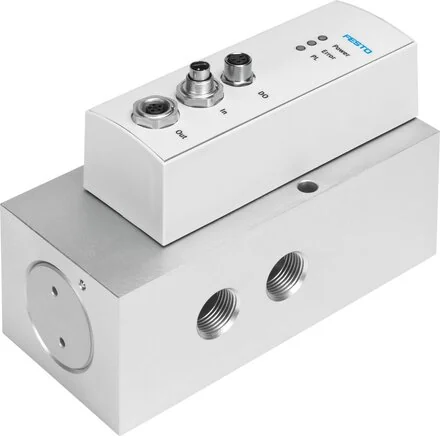

Reset Mode
Spring magnetic
Cover Material
PA reinforced
Fastening Type
With throughway bores, With Accessories
Flow Direction
Not reversible
Valve Function
5/3-way proportional control valve, closed
Status Displays
LED yellow = PL (Power Load), LED green = Power, LED red = error
Housing Material
Aluminium wrought alloy, anodized
Operating Medium
Compressed air to ISO 8573-1:2010 [6:4:4]
Control Interface
Digital, Closing resistance integrated, CAN bus with Festo protocol
Construction Set Up
Piston pusher, With Integrated pressure sensors
Protection Category
IP65, In mounted condition
Material Information
RoHs compliant
Repeatability FS (%)
< 1 %
Colour Of Connections
Connection 2 Blue, Connection 4 Black
Design Digital Output
No galvanic separation, acc. to IEC 61131-2, Positive logic (PNP), Short circuit proof, Backwards feed without deterioration
Installation Position
beliebig, vorzugsweise liegend (Anzeigeelemente nach oben) Wird das Ventil bewegt, muss es quer zur Bewegungsrichtung montiert sein
Ex Ambient Temperature
0°C <= Ta <= +50°C
Pneumatic Connection 1
G3/8
Pneumatic Connection 2
G3/8
Pneumatic Connection 3
G3/8
Pneumatic Connection 4
G3/8
Pneumatic Connection 5
G3/8
Medium Temperature (°C)
0 to 50
Operating Pressure (bar)
0 to 10
Ambient Temperature (°C)
0 to 50
Load Voltage Range DC (V)
18 to 30
Resolution Pressure (bar)
0,01
Design 24 V Voltage Output
No galvanic separation, Positive logic (PNP), Short circuit proof, Backwards feed without deterioration
Max. Power Input Logic (A)
0,15
Nominal Load Voltage DC (V)
24
Normal Nominal Flow (l/min)
2.000
Supply Voltage Digital Output
24 V load voltage
Corrosion Resistance Class KBK
1 - low corrosion stress
Operating Voltage Range DC (V)
18 to 30
Supply Voltage, Voltage Output
24 V load voltage
Ex Ignition Protection Type Gas
Ex nA IIC T5 X Gc
Nominal Operating Pressure (bar)
6
Nominal Operating Voltage DC (V)
24
Max. Power Input Valve Actuator (A)
1,2
Max. Load Current Digital Output (mA)
500
Electrical Connection: Fieldbus Interface
M8, 4 pin, socket / container / ….
UKCA Marking (See Declaration Of Conformity)
Oiled operation not possible
CE Certificate (See Declaration Of Conformity)
to EU EMC directive, to EU EX protection directive (ATEX)
Operating Pressure Positioning / Soft Stop (bar)
4 to 8
