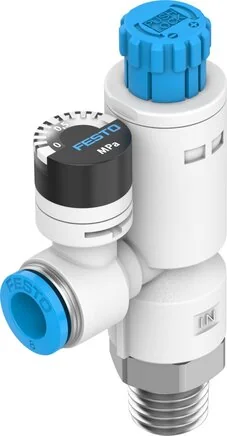

Festo - VRPA-LM-R14-Q8-8086013 - Pressure Regulator

SKU: festo-vrpa-lm-r14-q8-8086013

Browse all parts
Festo - VRPA-LM-R14-Q8-8086013 - Pressure Regulator

€97.20€83.08 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€97.20

Brand
Festo
Material Note
RoHs compliant
Stud Material
Nickel-plated brass
Actuation Type
Manually
Can Be Rotated
360 deg/no permanent tilt permitted
Fastening Type
Screwable
Setting Element
Rotary button with stopper
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Pressure Display
with pressure gauge
Seal Type On Stud
coating
Controller Function
mit Rückstromverhalten
Installation Position
arbitrary
Material Static Seals
NBR
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
R1/4
Pneumatic Connection 2
QS-8
Thread Sealing Material
PTFE
Ambient Temperature (°C)
0 to 60
Pressure Regulation Range (MPa)
0.1 to 0.8
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
130
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568458775
Manufacturer
Festo
