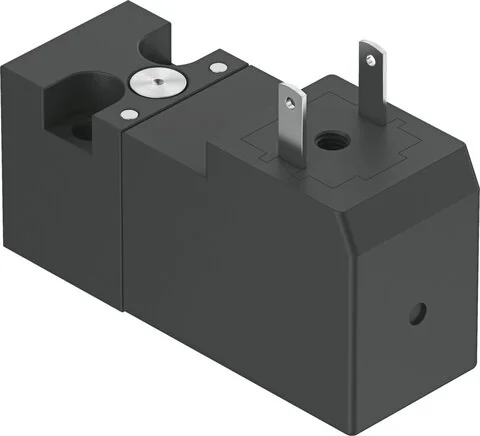

Festo - VSCS-B-M32-MD-WA-1E1-8-8137328 - Solenoid Valve

SKU: festo-vscs-b-m32-md-wa-1e1-8-8137328

Browse all parts
Festo - VSCS-B-M32-MD-WA-1E1-8-8137328 - Solenoid Valve

€38.26€32.70 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€38.26

Brand
Festo
Overlap
negative Überdeckung
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Build Width (mm)
15
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Protection Category
IP65
Complies To Standard
ISO 15218
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Electrical Connection
Anschlussbild Form C nach Industriestandard 9,4 mm
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
8
LABS (PWIS) Conformity
VDMA24364-C1-L
Pneumatic Connection 1
Connection plate
Pneumatic Connection 2
Connection plate
Pneumatic Connection 3
Connection plate
Shifting Time Off (ms)
6
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0,15 to 0,8
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
24 V DC: 1,3 W
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
13,5
EAN
4052568595418
Manufacturer
Festo
