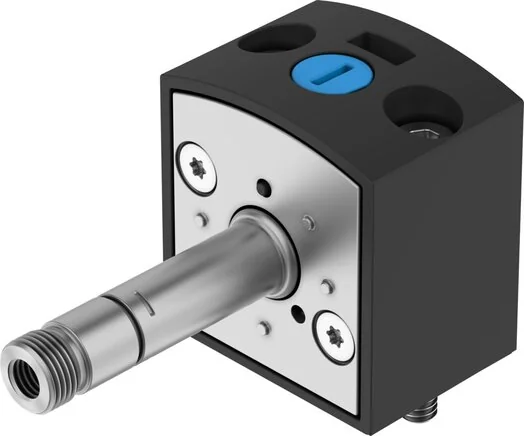

Festo - VSCS-B-M32C-MD-WB-F8-8028540 - Solenoid Valve

SKU: festo-vscs-b-m32c-md-wb-f8-8028540

Browse all parts
Festo - VSCS-B-M32C-MD-WB-F8-8028540 - Solenoid Valve

€28.07€23.99 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€28.07

Brand
Festo
Overlap
negative Überdeckung
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
CNOMO
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Build Width (mm)
30
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Construction Set Up
Connection plate valve
Protection Category
IP65
Complies To Standard
ISO 15218
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Shifting Time Off (ms)
8
Medium Temperature (°C)
-10 to 50
Operating Pressure (MPa)
0,2 to 1
Ambient Temperature (°C)
-10 to 50
Max. Switching Frequency (Hz)
5
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
3000
Max. Negative Test Impulse For 1 Signal
3400
Standard Nominal Flow Rate (Standardised To DIN 1343)
34
EAN
4052568640439
Manufacturer
Festo
