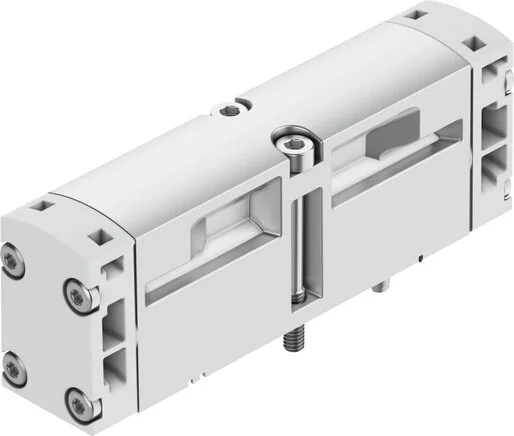

Festo - VSPA-B-P53E-A2-546729 - Pneumatic Valve

SKU: festo-vspa-b-p53e-a2-546729

Browse all parts
Festo - VSPA-B-P53E-A2-546729 - Pneumatic Valve

€118.49€101.27 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€118.49

Brand
Festo
Overlap
positive Überdeckung
Flow Valve
650
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Flow Direction
Reversible
Seals Material
NBR
Valve Function
5/3 vented
Screws Material
verzinkt
Build Width (mm)
18
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Relative Humidity
0 - 90 %
Sealing Principle
Soft
Nominal Width (mm)
5
Construction Set Up
Piston pusher
Complies To Standard
VDMA 24563
Installation Position
arbitrary
Shifting Time On (ms)
9
Control Pressure (bar)
3 to 10
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate Size 18 mm to ISO 15407-1
Pneumatic Connection 2
Connection plate Size 18 mm to ISO 15407-1
Pneumatic Connection 3
Connection plate Size 18 mm to ISO 15407-1
Pneumatic Connection 4
Connection plate Size 18 mm to ISO 15407-1
Pneumatic Connection 5
Connection plate Size 18 mm to ISO 15407-1
Shifting Time Off (ms)
18
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
-0.9 to 10
Ambient Temperature (°C)
-10 to 60
Control Air 12 Connection
Connection plate Size 18 mm to ISO 15407-1
Control Air 14 Connection
Connection plate Size 18 mm to ISO 15407-1
Corrosion Resistance Class KBK
0 - No corrosion stressing
Flow Valve Pneumatically Linked
450
Flow Valve Single Connection Plate
500
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Tightening Torque Valve Fastening (Nm)
0.9 to 1.1
Standard Nominal Flow Rate (Standardised To DIN 1343)
450
EAN
4052568092412
Manufacturer
Festo
