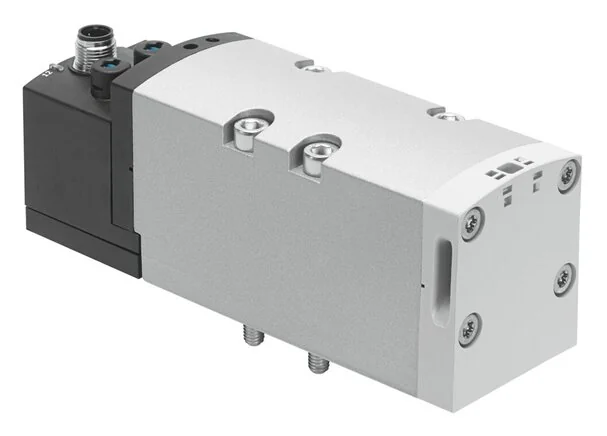

Festo - VSVA-B-B52-D-D2-1R5L-566995 - Solenoid Valve

SKU: festo-vsva-b-b52-d-d2-1r5l-566995

Browse all parts
Festo - VSVA-B-B52-D-D2-1R5L-566995 - Solenoid Valve

€343.17€293.31 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€343.17

Brand
Festo
KC-mark
KC-EMV
Overlap
positive Überdeckung
Flow Valve
4000
Permission
c UL us - Recognized (OL)
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
on connection plate
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
5/2 bistable
Screws Material
verzinkt
Build Width (mm)
52
Exhaust Function
über Einzelanschlussplatte
Housing Material
PA
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
0 - 90 %
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
15
Shifting Time (ms)
18
Construction Set Up
Piston pusher
Protection Category
NEMA 4
Complies To Standard
ISO 5599-1
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
59
Electrical Connection
runde Bauform
Hand Assist Actuation
tentative
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate Size 2 to ISO 5599-1
Pneumatic Connection 2
Connection plate Size 2 to ISO 5599-1
Pneumatic Connection 3
Connection plate Size 2 to ISO 5599-1
Pneumatic Connection 4
Connection plate Size 2 to ISO 5599-1
Pneumatic Connection 5
Connection plate Size 2 to ISO 5599-1
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0,3 to 1
Signal Condition Display
LED
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
24 V DC: 4,6 W
Corrosion Resistance Class KBK
0 - No corrosion stressing
Permitted Voltage Oscillations
± 10 %
Flow Valve Pneumatically Linked
2800
Flow Valve Single Connection Plate
2400
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Nominal Current For Current Reduction
35 mA after 30 ms
Max. Positive Test Impulse At 0 Signal
1000
Max. Negative Test Impulse For 1 Signal
3500
Nominal Tightening Current Per Solenoid
165 mA to 30 ms
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Standard Nominal Flow Rate (Standardised To DIN 1343)
2800
EAN
4052568007799
Manufacturer
Festo
