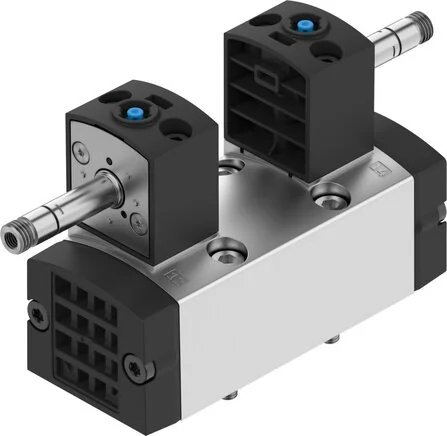

Festo - VSVA-B-B52-T-D1-F8-8033657 - Solenoid Valve

SKU: festo-vsva-b-b52-t-d1-f8-8033657

Browse all parts
Festo - VSVA-B-B52-T-D1-F8-8033657 - Solenoid Valve

€192.99€164.95 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€192.99

Brand
Festo
B-value
1.6
C-value
7,697
Overlap
positive Überdeckung
Flow Valve
1700
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
on connection plate
Flow Direction
Not reversible
Seals Material
NBR
Vacuum Capable
no
Valve Function
5/2 bistable
Screws Material
Steel
Build Width (mm)
42
Exhaust Function
über Einzelanschlussplatte
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Relative Humidity
0 - 90 %
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
8
Shifting Time (ms)
16
Construction Set Up
Piston pusher
Protection Category
NEMA 4
Complies To Standard
ISO 5599-1
Pitch Dimension (mm)
43
Hand Assist Actuation
With Accessories ratcheting
Installation Position
arbitrary
Pre-control Interface
acc. to ISO 15218
Control Pressure (MPa)
0,3 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 2
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 3
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 4
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 5
Connection plate Size 1 to ISO 5599-1
Medium Temperature (°C)
-10 to 50
Operating Pressure (MPa)
0,3 to 1
Ambient Temperature (°C)
-10 to 50
Control Air 12 Connection
Connection plate Size 1 to ISO 5599-1
Control Air 14 Connection
Connection plate Size 1 to ISO 5599-1
Sound Pressure Level (dB(A))
85
Exhaust Control Connection 82
Not recorded
Exhaust Control Connection 84
Not recorded
Max. Switching Frequency (Hz)
5
Flow Valve Pneumatically Linked
1400
Flow Valve Single Connection Plate
1400
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Tightening Torque Valve Fastening (Nm)
1
Flow Valve Pneumatically Linked Flow Optimised
1600
Nominal Flow Rate Standardised According To ISO 8778
1800
EAN
4052568654726
Manufacturer
Festo
