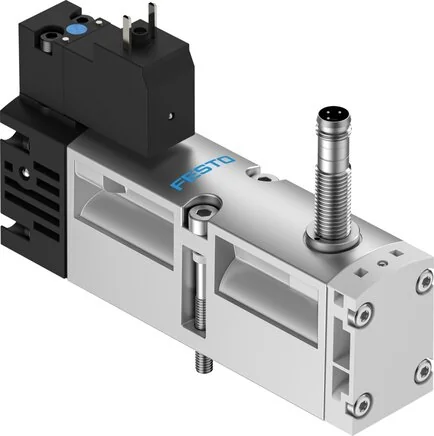

Overlap
positive Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Fastening Type
on connection plate
Valve Function
5/2 monostable
Screws Material
Zinc-plated steel
Exhaust Function
über Einzelanschlussplatte
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
0 - 90 %
Certification Body
UL MH19482
Control Air Supply
external
Construction Set Up
Piston pusher
Protection Category
NEMA 4
Complies To Standard
VDMA 24563
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pilot Air Port 12/14
Connection plate Size 26 mm to ISO 15407-1
Electrical Connection
ohne Schutzleiter
Hand Assist Actuation
Covered
Installation Position
arbitrary
Measurement Principle
Inductive
Pre-control Interface
acc. to ISO 15218
Control Pressure (MPa)
0,3 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Noise Status Indicator
LED
Pneumatic Connection 1
Connection plate Size 26 mm to ISO 15407-1
Pneumatic Connection 2
Connection plate Size 26 mm to ISO 15407-1
Pneumatic Connection 3
Connection plate Size 26 mm to ISO 15407-1
Pneumatic Connection 4
Connection plate Size 26 mm to ISO 15407-1
Pneumatic Connection 5
Connection plate Size 26 mm to ISO 15407-1
Residual Ripple Sensor
± 10 %
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
-0,09 to 1,6
Signal Condition Display
With Accessories
Switching Position Query
Idle position with sensor
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
24 V DC: 1,8 W
Switching Element Function
NC contact
Sound Pressure Level (dB(A))
85
Corrosion Resistance Class KBK
0 - No corrosion stressing
Permitted Voltage Oscillations
-1,5
Flow Valve Pneumatically Linked
1100
Max. Output Current Sensor (mA)
200
Short Circuit Resistance Sensor
Cycling
Exhaust Control Connection 82/84
wahlweise:
Nominal Operating Voltage DC (V)
24
Flow Valve Single Connection Plate
1100
Reverse Polarity Protection Sensor
for all electrical connections
Max. Switching Frequency Sensor (Hz)
5.000
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Operating Voltage Range DC Sensor (V)
10 to 30
Valve - Sensor Switching Time On (ms)
60
Max. Positive Test Impulse At 0 Signal
1800
Valve - Sensor Switching Time Off (ms)
11
Max. Negative Test Impulse For 1 Signal
800
Max. Tightening Torque Valve Fastening (Nm)
1.8 to 2.2
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für EMV
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Standard Nominal Flow Rate (Standardised To DIN 1343)
1100
