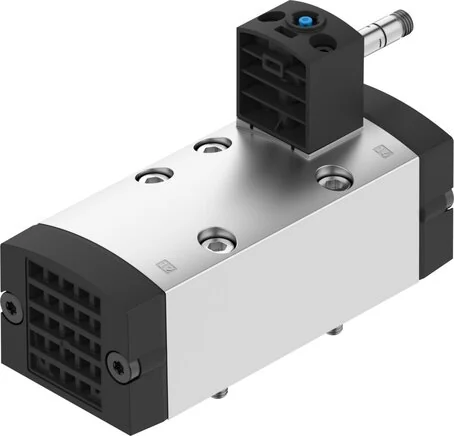

Festo - VSVA-B-M52-MZH-D1-F8-8198566 - Solenoid Valve

SKU: festo-vsva-b-m52-mzh-d1-f8-8198566

Browse all parts
Festo - VSVA-B-M52-MZH-D1-F8-8198566 - Solenoid Valve

€160.52€137.20 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€160.52

Brand
Festo
B-value
1.7
C-value
7,718
Overlap
positive Überdeckung
Flow Valve
1700
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
on connection plate
Flow Direction
Reversible
Seals Material
NBR
Vacuum Capable
yes
Valve Function
5/2 monostable
Screws Material
Steel
Build Width (mm)
42
Exhaust Function
über Einzelanschlussplatte
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Relative Humidity
0 - 90 %
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
8
Construction Set Up
Piston pusher
Protection Category
NEMA 4
Complies To Standard
ISO 5599-1
Pitch Dimension (mm)
43
Hand Assist Actuation
tentative
Installation Position
arbitrary
Pre-control Interface
acc. to ISO 15218
Shifting Time On (ms)
21
Control Pressure (MPa)
0,3 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 2
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 3
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 4
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 5
Connection plate Size 1 to ISO 5599-1
Shifting Time Off (ms)
52
Medium Temperature (°C)
-10 to 50
Operating Pressure (MPa)
-0,09 to 1,6
Ambient Temperature (°C)
-10 to 50
Control Air 12 Connection
Connection plate Size 1 to ISO 5599-1
Control Air 14 Connection
Connection plate Size 1 to ISO 5599-1
Sound Pressure Level (dB(A))
85
Exhaust Control Connection 82
Not recorded
Exhaust Control Connection 84
Not recorded
Max. Switching Frequency (Hz)
1
Flow Valve Pneumatically Linked
1400
Flow Valve Single Connection Plate
1400
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Tightening Torque Valve Fastening (Nm)
1
Flow Valve Pneumatically Linked Flow Optimised
1600
Nominal Flow Rate Standardised According To ISO 8778
1800
EAN
4052568656157
Manufacturer
Festo
