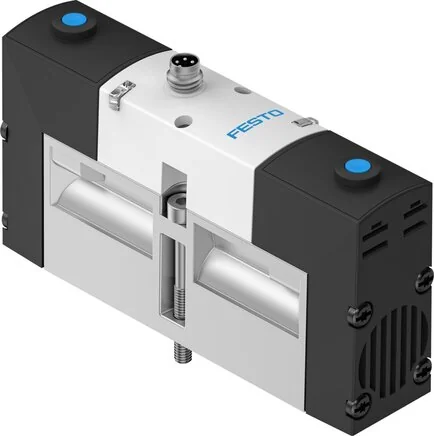

Festo - VSVA-B-P53C-ZH-A1-1R2L-534529 - Solenoid Valve

SKU: festo-vsva-b-p53c-zh-a1-1r2l-534529

Browse all parts
Festo - VSVA-B-P53C-ZH-A1-1R2L-534529 - Solenoid Valve

€312.32€266.94 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€312.32

Brand
Festo
B-value
0.24
C-value
4,35
Overlap
positive Überdeckung
Flow Valve
1400
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With Throughway bore and screw
Flow Direction
arbitrary
Seals Material
NBR
Valve Function
5/3 closed
Build Width (mm)
26
Exhaust Function
über Einzelanschlussplatte
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
0 - 90 %
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
9
Construction Set Up
Piston pusher
Protection Category
NEMA 4
Additional Functions
Schutzabschaltung
Complies To Standard
ISO 15407-1
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pilot Air Port 12/14
Connection plate Size 26 mm to ISO 15407-1
Pitch Dimension (mm)
27
Electrical Connection
runde Bauform
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
20
Control Pressure (MPa)
0,3 to 0,8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Shifting Time Off (ms)
52
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
-0,09 to 1,6
Signal Condition Display
LED
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
24 V DC: Niederstromphase 1,0 W, Hochstromphase 2,4 W
Reverse Polarity Protection
for all electrical connections
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Flow Valve Pneumatically Linked
1000
Exhaust Control Connection 82/84
wahlweise:
Flow Valve Single Connection Plate
1100
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Nominal Current For Current Reduction
30 mA after 20 ms
Max. Positive Test Impulse At 0 Signal
400
Max. Negative Test Impulse For 1 Signal
100
Nominal Tightening Current Per Solenoid
110 mA to 20 ms
Max. Tightening Torque Valve Fastening (Nm)
1.8 to 2.2
Protect Against Direct And Indirect Contact
PELV
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Standard Nominal Flow Rate (Standardised To DIN 1343)
1000
EAN
4052568168230
Manufacturer
Festo
