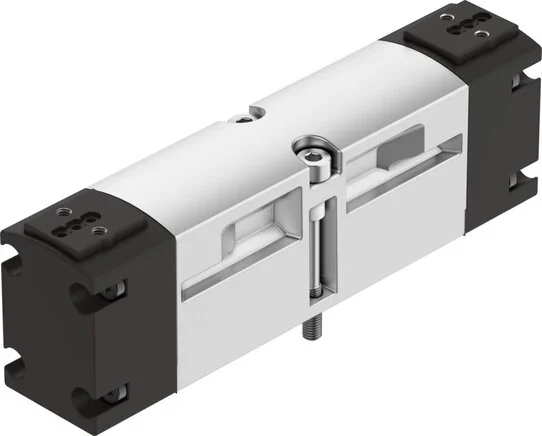

Festo - VSVA-B-P53E-A1-P1-546745 - Base Valve

SKU: festo-vsva-b-p53e-a1-p1-546745

Browse all parts
Festo - VSVA-B-P53E-A1-P1-546745 - Base Valve

€149.98€128.19 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€149.98

Brand
Festo
Overlap
positive Überdeckung
Flow Valve
1400
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
on connection plate
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
5/3 vented
Screws Material
verzinkt
Valve Size (mm)
26
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
0 - 90 %
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
9
Construction Set Up
Piston pusher
Protection Category
NEMA 4
Complies To Standard
VDMA 24563
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Installation Position
arbitrary
Pre-control Interface
acc. to ISO 15218
Control Pressure (MPa)
0,3 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate Size 26 mm to ISO 15407-1
Pneumatic Connection 2
Connection plate Size 26 mm to ISO 15407-1
Pneumatic Connection 3
Connection plate Size 26 mm to ISO 15407-1
Pneumatic Connection 4
Connection plate Size 26 mm to ISO 15407-1
Pneumatic Connection 5
Connection plate Size 26 mm to ISO 15407-1
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0,3 to 1
Signal Condition Display
LED
Ambient Temperature (°C)
-5 to 50
Sound Pressure Level (dB(A))
85
Corrosion Resistance Class KBK
0 - No corrosion stressing
Flow Valve Pneumatically Linked
1000
Exhaust Control Connection 82/84
nicht gefasst nach Norm
Support Air Control Connection 12
Connection plate Size 26 mm to ISO 15407-1
Support Air Control Connection 14
Connection plate Size 26 mm to ISO 15407-1
Flow Valve Single Connection Plate
1100
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Tightening Torque Valve Fastening (Nm)
1.8 to 2.2
Standard Nominal Flow Rate (Standardised To DIN 1343)
1000
EAN
4052568185077
Manufacturer
Festo
