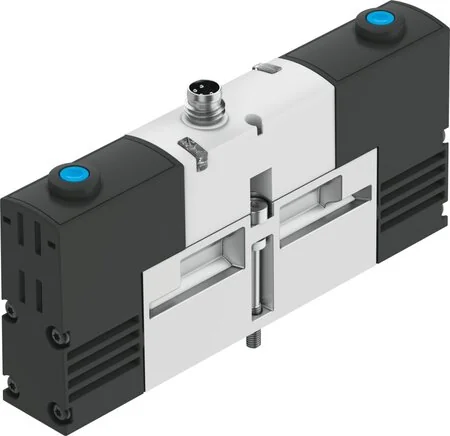

Festo - VSVA-B-P53E-H-A2-1R2L-534779 - Solenoid Valve

SKU: festo-vsva-b-p53e-h-a2-1r2l-534779

Browse all parts
Festo - VSVA-B-P53E-H-A2-1R2L-534779 - Solenoid Valve

€301.22€257.45 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€301.22

Brand
Festo
Overlap
positive Überdeckung
Flow Valve
650
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
on connection plate
Flow Direction
Not reversible
Valve Function
5/3 vented
Build Width (mm)
18
Exhaust Function
Can be throttled
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
0 - 90 %
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
5
Construction Set Up
Piston pusher
Protection Category
IP65
Additional Functions
Schutzabschaltung
Complies To Standard
VDMA 24563
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
runde Bauform
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
15
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Shifting Time Off (ms)
36
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0,3 to 0,8
Signal Condition Display
LED
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
24 V DC: Niederstromphase 1,0 W, Hochstromphase 2,4 W
Reverse Polarity Protection
for all electrical connections
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
21.6 to 26.4
Flow Valve Pneumatically Linked
450
Flow Valve Single Connection Plate
500
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
500
Max. Negative Test Impulse For 1 Signal
500
Max. Tightening Torque Valve Fastening (Nm)
0.9 to 1.1
Protect Against Direct And Indirect Contact
PELV
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Standard Nominal Flow Rate (Standardised To DIN 1343)
450
EAN
4052568168544
Manufacturer
Festo
